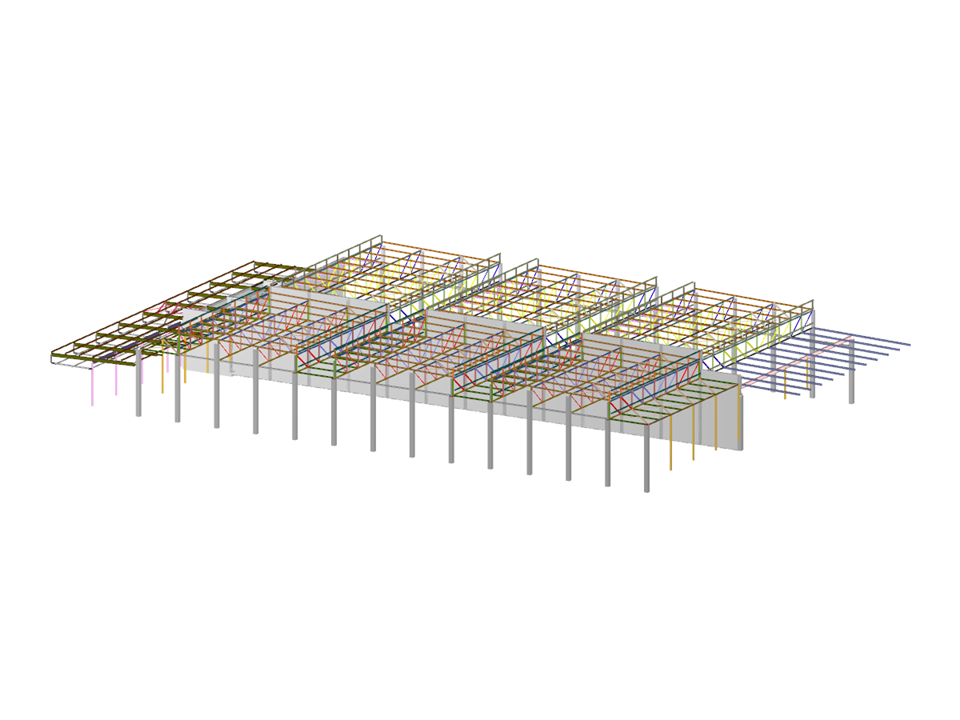

Production and administration building in Dunningen, Germany
Structural Design:
Isenmann Ingenieur GmbH
www.isenmann-ingenieure.de
Halls with Steel Trusses
No Download Possible
Customer Project / View Only
| Number of Nodes | 2298 |
| Number of Lines | 3602 |
| Number of Members | 3387 |
| Number of Surfaces | 23 |
| Total Weight | 1312.611 tons |
| Dimensions (Metric) | 92.355 x 50.065 x 12.382 m |
| Dimensions (Imperial) | 303 x 164.26 x 40.62 feet |
| Program Version | 5.25.01 |
