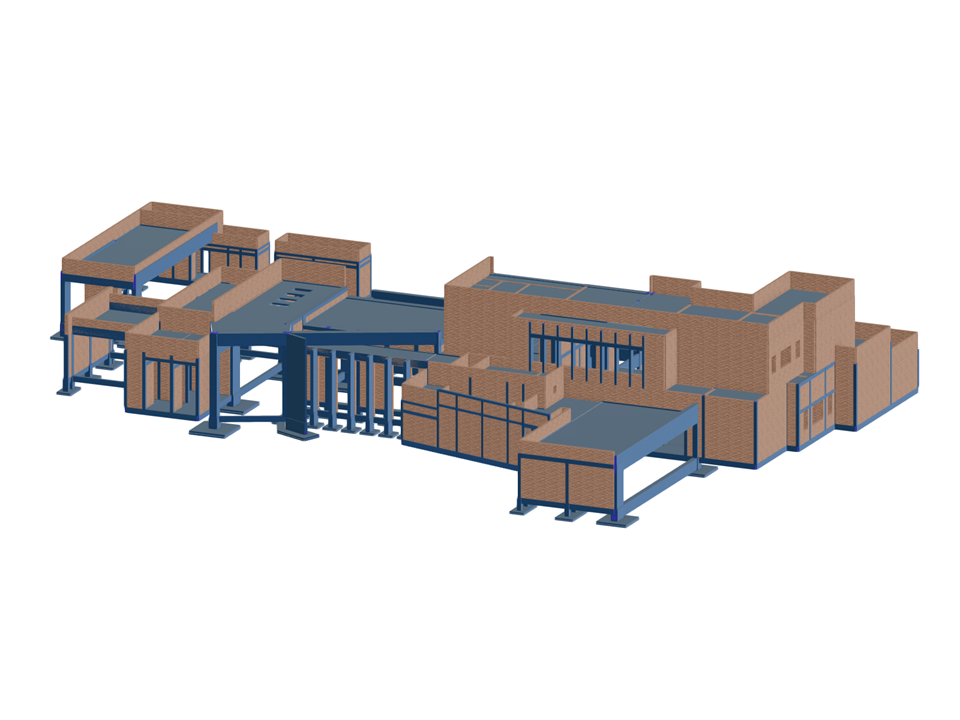

Residential Building in Los Mochis, Sinaloa, Mexico
Structural Design:
JCR Estructural – Ing. Alberto Cervantes
www.jcrestructural.com
Reinforced Concrete Residential Building
Number of Nodes | 1530 |
Number of Lines | 2257 |
Number of Members | 918 |
Number of Surfaces | 480 |
Number of Solids | 0 |
Number of Load Cases | 5 |
Number of Load Combinations | 6 |
Number of Result Combinations | 3 |
Total Weight | 2442.781 tons |
Dimensions (Metric) | 67,704 x 12,050 x 47,237 m |
Dimensions (Imperial) | 222.13 x 39.53 x 154.98 feet |
