Supports contributing to a load reduction only under compression or tension can be defined as nonlinear supports.
This model was used to explain the selection of the correct nonlinearity for "failure under tension" or "failure under compression".

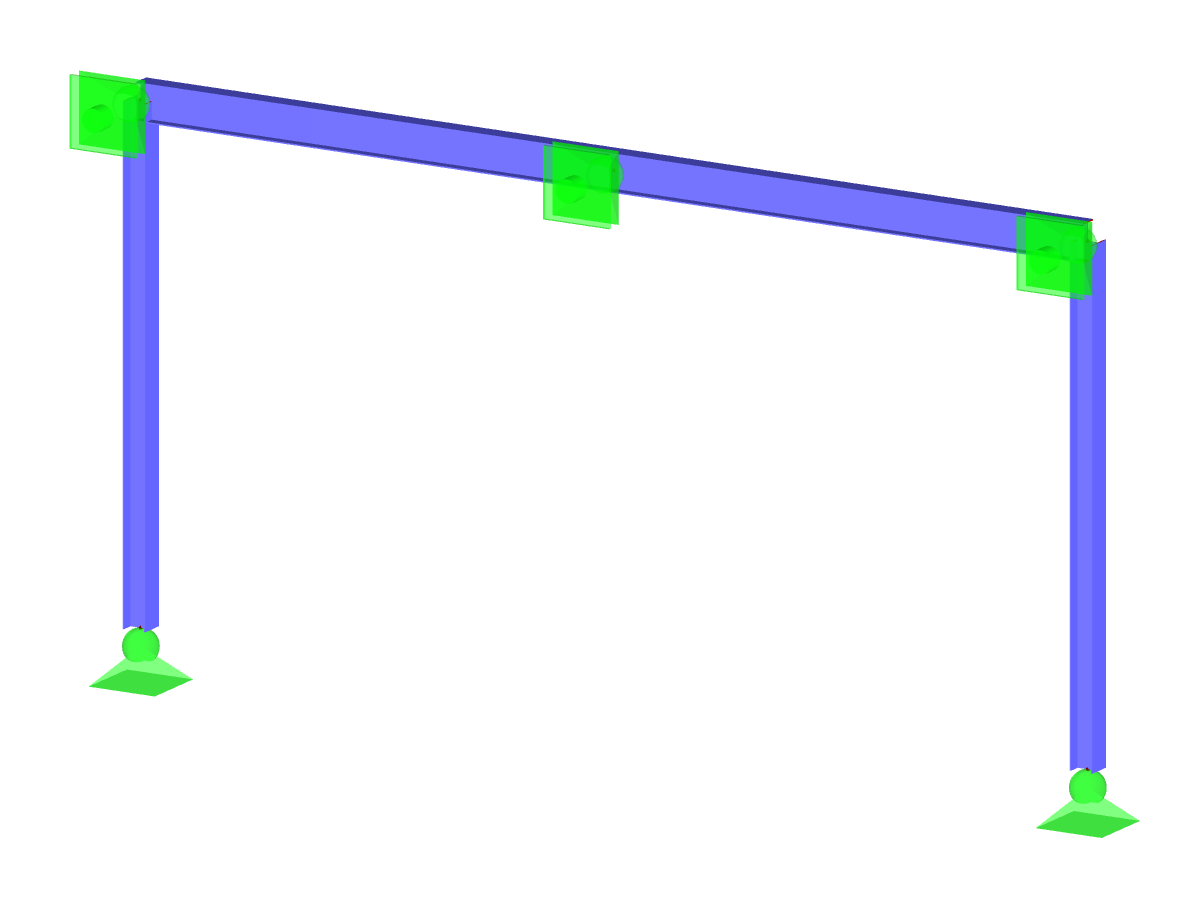

Steel Frame Structure
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.226 tons |
| Dimensions (Metric) | 8.000 x 4.000 x 0.000 m |
| Dimensions (Imperial) | 26.25 x 13.12 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
