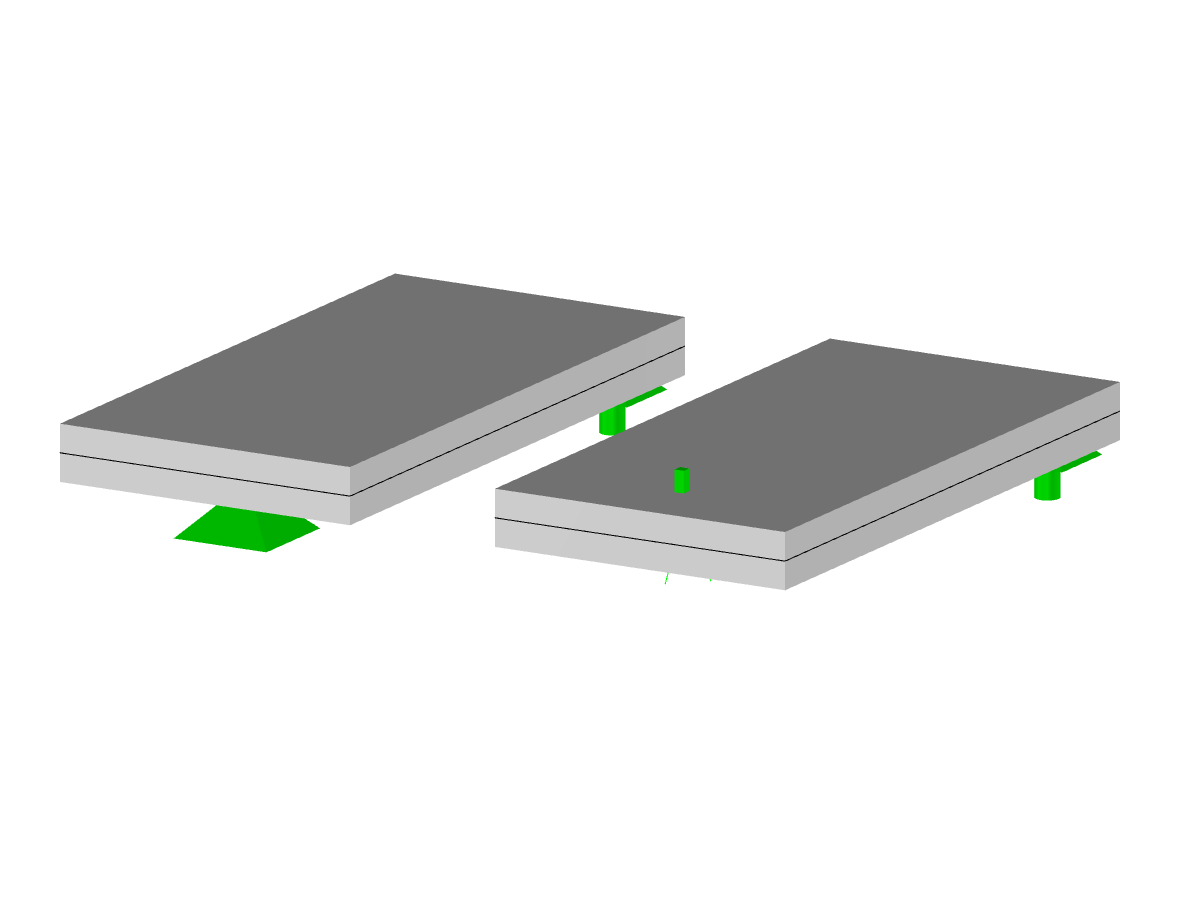

The model presented in the video shows the targeted use of nodal supports in the surface foundation to avoid stress peaks at the connection areas. It is shown how elastic nodal supports in combination with columns can be used to optimize critical transition regions in a structural way. The image models true-to-scale details of the spatial arrangement and interaction of the structural elements. All aspects of the application are based on comprehensible, practice-oriented design principles.
Model Used in
Surface Support | Nodal Support Optimization
| Number of Nodes | 10 |
| Number of Lines | 8 |
| Number of Surfaces | 2 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 2.500 x 2.230 x 0.960 m |
| Dimensions (Imperial) | 8.2 x 7.32 x 3.15 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
