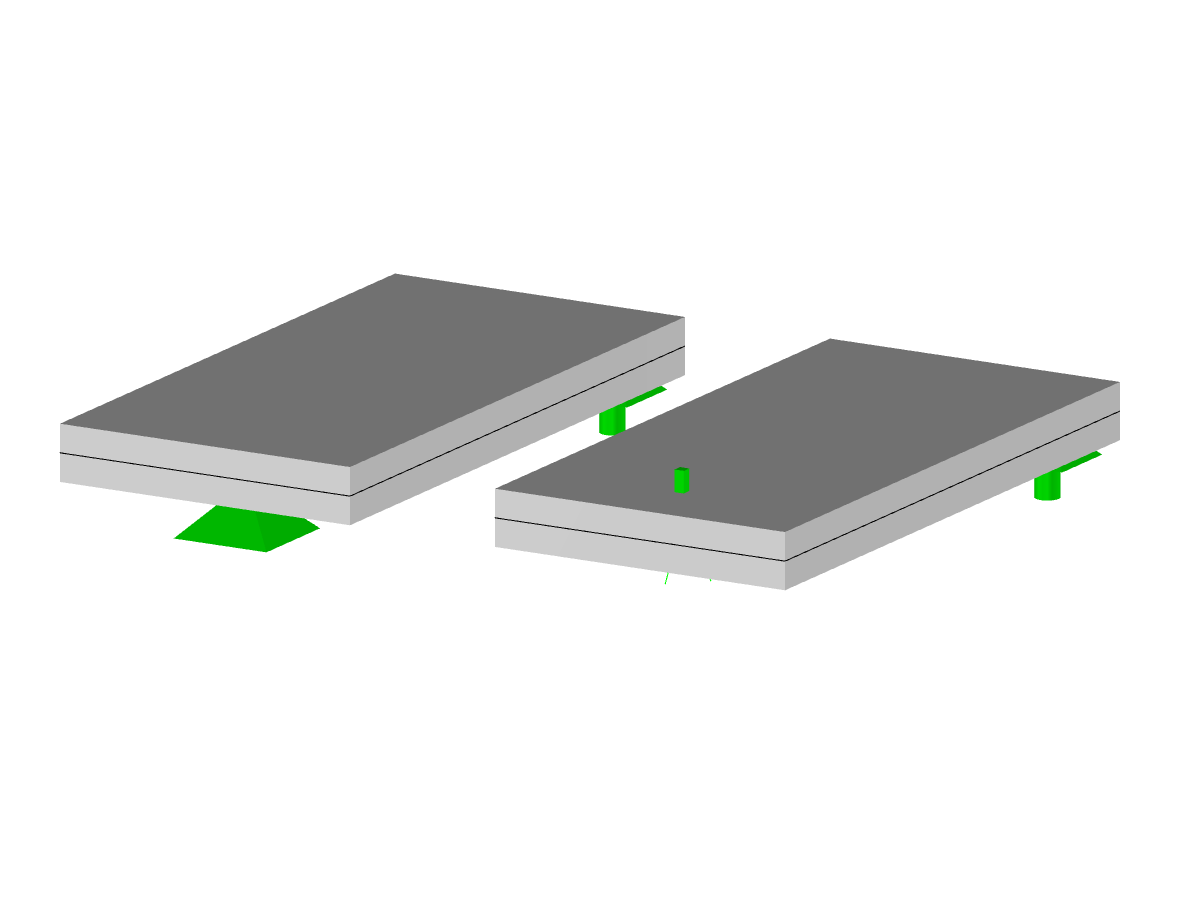

The model demonstrates in practice how to avoid stress concentrations at a nodal support connected to a surface. It illustrates the use of nodal supports, columns, springs, and elastic nodal supports for optimizing load distribution. The concept aids in understanding the interaction between flexible support elements and adjacent surfaces. The attached image at https://www.dlubal.com/de/img/15974 provides a visual impression of the illustrated solution.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Surfaces with Nodal Supports as Pillar for Stress Reduction

Number of Nodes 10
Number of Lines 8
Number of Surfaces 2
Number of Load Cases 1
Dimensions (Metric) 2.500 x 2.050 x 0.600 m
Dimensions (Imperial) 8.2 x 6.73 x 1.97 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
