This model was used to explain how to save specific cross-section selections in different favorites groups by using the cross-section library in RFEM 5 and RSTAB 8.
Model Used in

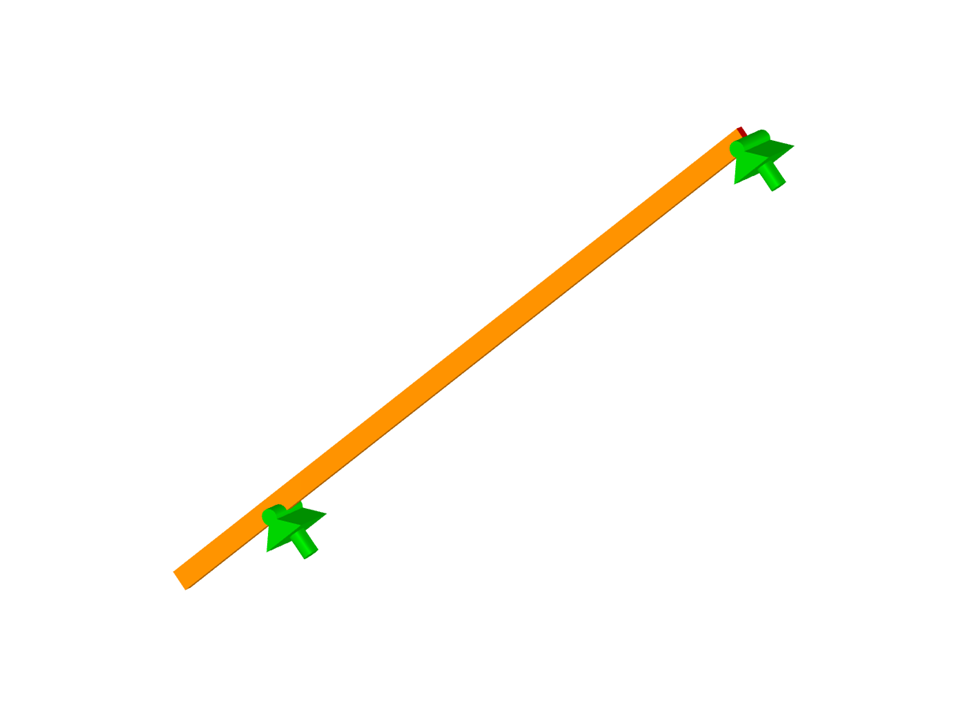

Purlin
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 0.029 tons |
| Dimensions (Metric) | 4.700 x 3.944 x 0.000 m |
| Dimensions (Imperial) | 15.42 x 12.94 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
