This model was used to explain how to reduce the number of generated load combinations by defining the leading variable actions.
Model Used in

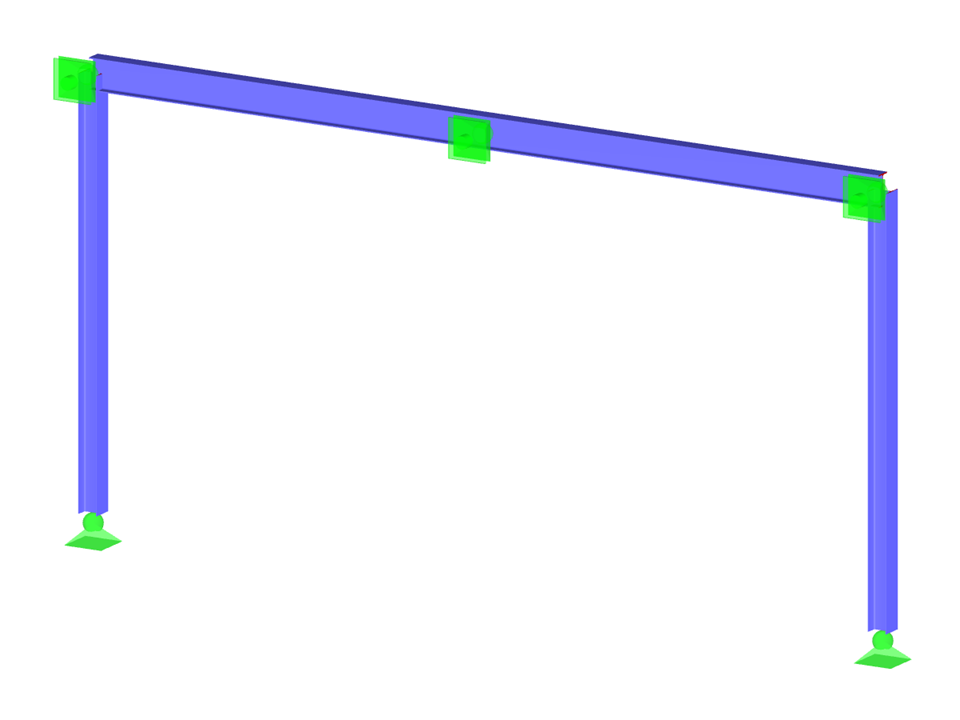

Symmetrical Two-Hinged Frame
Number of Nodes | 5 |
Number of Lines | 4 |
Number of Members | 4 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 4 |
Number of Load Combinations | 7 |
Number of Result Combinations | 1 |
Total Weight | 0.676 tons |
Dimensions (Metric) | 8.000 x 4.000 x 0.000 m |
Dimensions (Imperial) | 26.25 x 13.12 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
