Based on this model, the lateral-torsional buckling analysis of a single-span beam was performed in RF-STEEL EC3 with the equivalent member method and an intermediate lateral restraint in the middle, then compared with a design according to the general method and with a central nodal support.

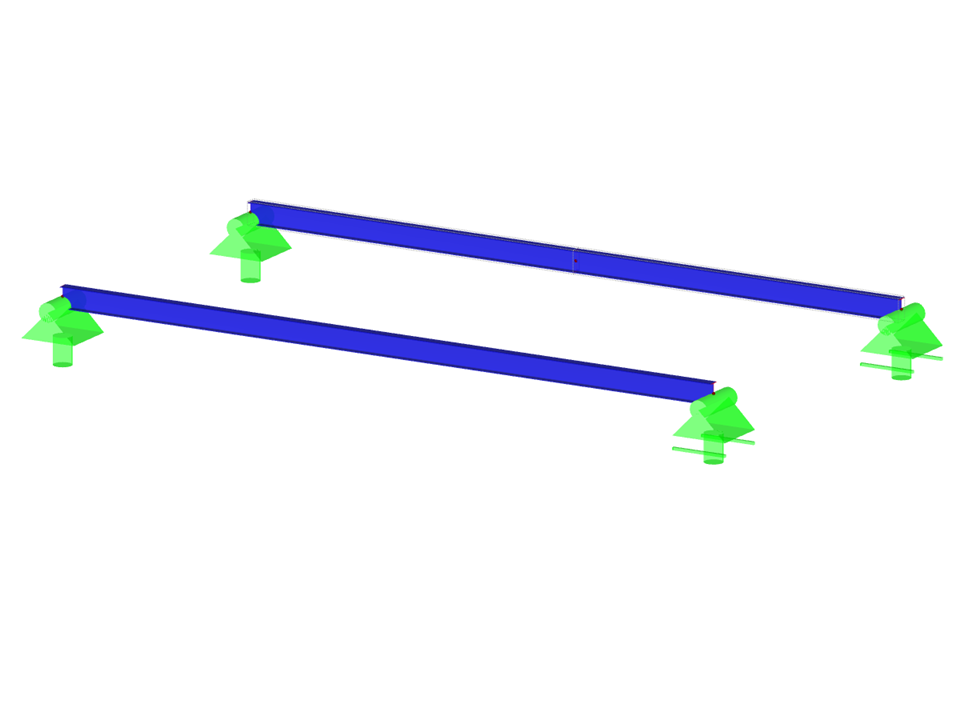

Model Used in
Single-Span Beam
| Number of Nodes | 5 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.845 tons |
| Dimensions (Metric) | 10,000 x 0,000 x 5,000 m |
| Dimensions (Imperial) | 32.81 x 0 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
