In RF‑CONCRETE Surfaces, you can display the reinforcement direction by activating the reinforcement arrow that represents it.
This is demonstrated using this structural analysis model.

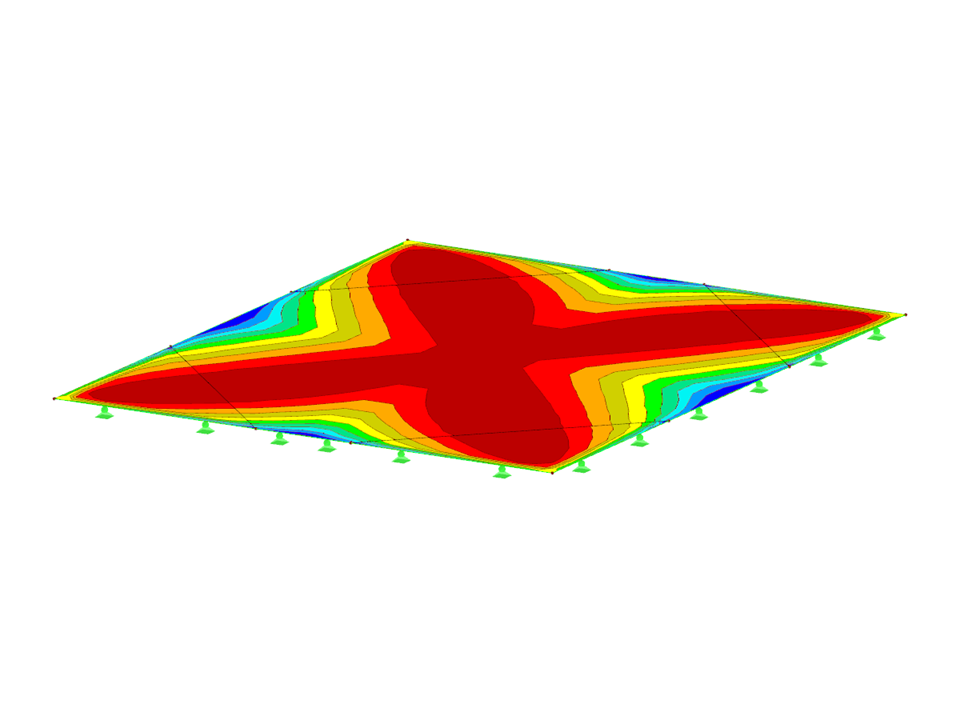

Reinforced Concrete Slab
| Number of Nodes | 12 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 6.502 tons |
| Dimensions (Metric) | 4.200 x 0.000 x 5.160 m |
| Dimensions (Imperial) | 13.78 x 0 x 16.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
