ATP architects engineers, in cooperation with Kauer Ingenieure GmbH, have designed a spectacular building with an external supporting structure utilizing BIM.
ATP architects engineers, Innsbruck, Austria
www.atp.ag
KTB, Bolzano, Italy
www.k-s.eu

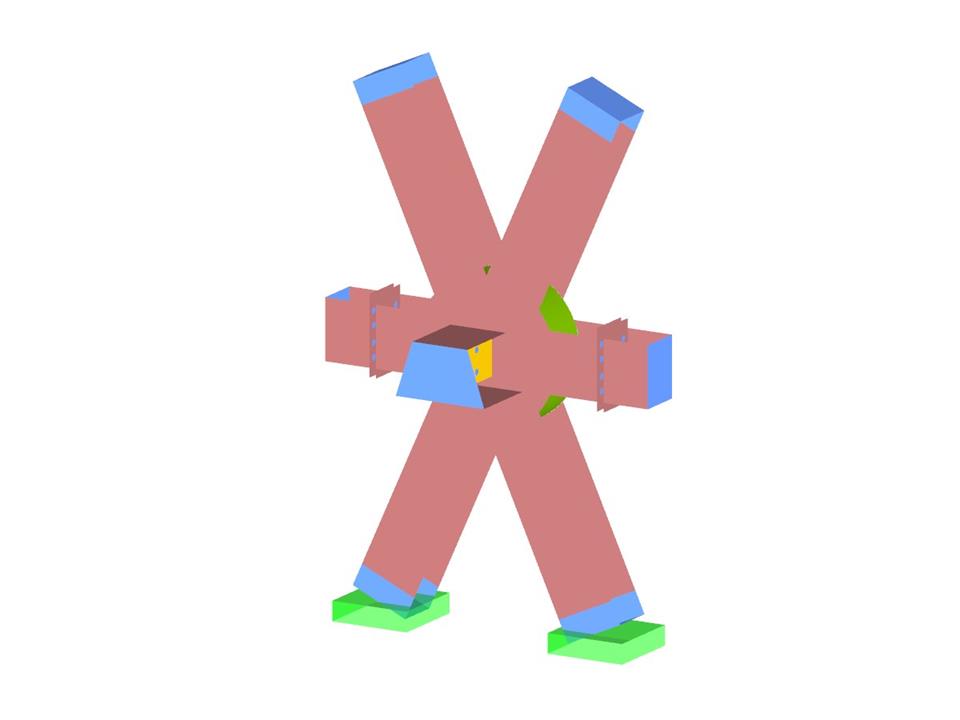

Facade Nodes
No Download Possible
Customer Project / View Only
Number of Nodes | 540 |
Number of Lines | 551 |
Number of Members | 31 |
Number of Surfaces | 106 |
Number of Load Cases | 4 |
Total Weight | 18.467 tons |
Dimensions (Metric) | 1.475 x 9.776 x 2.454 m |
Dimensions (Imperial) | 4.84 x 32.07 x 8.05 feet |
Program Version | 5.21.02 |
