From afar, visitors see a roller coaster standing alone on a green hill.
When approaching, they find out that it is not a roller coaster running at high speeds, but an accessible structure with a staircase of a total of 705.3 ft.
ifb frohloff staffa kühl ecker, Berlin, Germany
www.ifb-berlin.de

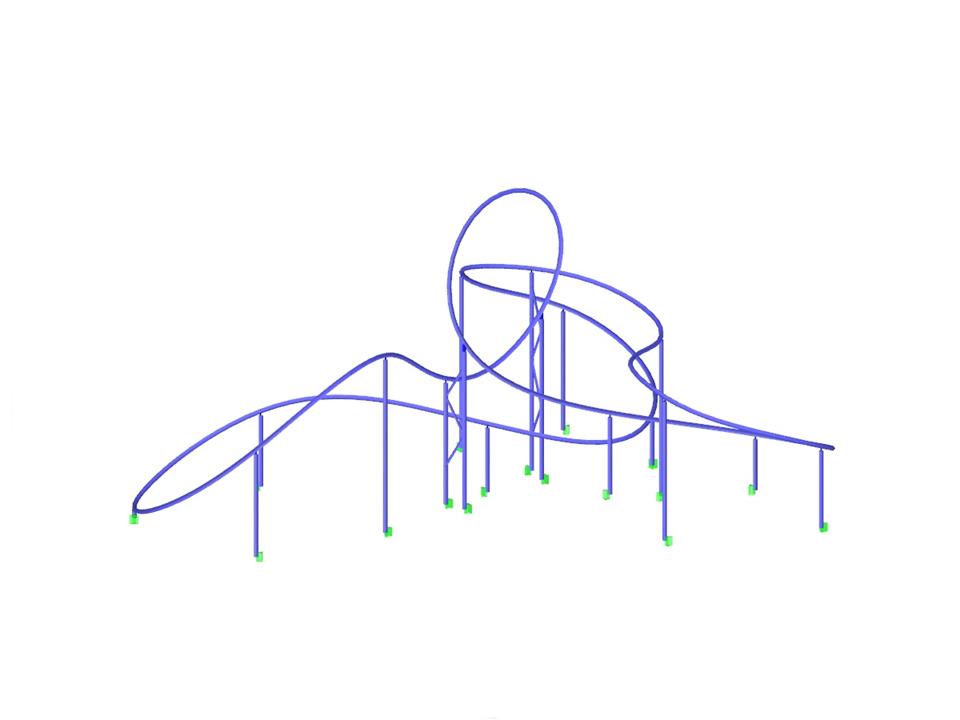

Model with Deformation Visualized in RSTAB (© ifb frohloff staffa Kühl ecker)
When approaching, they find out that it is not a roller coaster running at high speeds, but an accessible structure with a staircase of a total of 705.3 ft.
ifb frohloff staffa kühl ecker, Berlin, Germany
www.ifb-berlin.de
Model with Deformation Visualized in RSTAB (© ifb frohloff staffa Kühl ecker)
Steel Roller Coaster
No Download Possible
Customer Project / View Only
Number of Nodes | 258 |
Number of Members | 265 |
Number of Load Cases | 105 |
Number of Load Combinations | 14 |
Number of Result Combinations | 15 |
Total Weight | 59.181 tons |
Dimensions (Metric) | 39.810 x 38.749 x 20.831 m |
Dimensions (Imperial) | 130.61 x 127.13 x 68.34 feet |
Program Version | 7.04.33 |
