Completed in 2019, the project is currently the largest cross-laminated timber (CLT) building in the United States. Setting precedence among universities, the U of A is the first to complete a large-scale mass timber residence hall and living learning setting.
EQUILIBRIUM Consulting Inc., Vancouver, BC, Canada
www.eqcanada.com
EQUILIBRIUM Consulting Inc., Vancouver, BC, Canada
www.eqcanada.com
Submodels

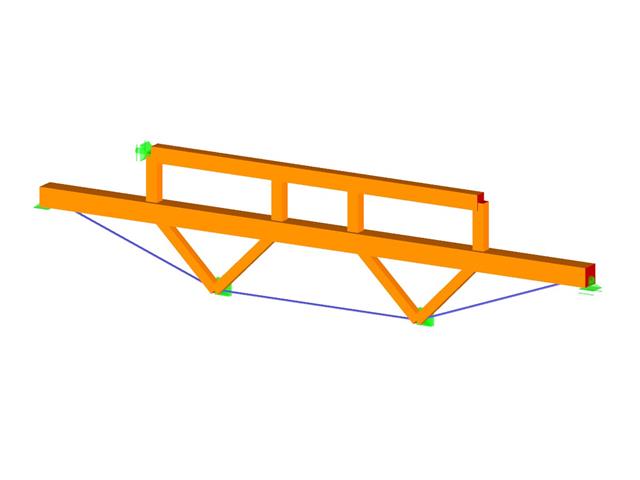

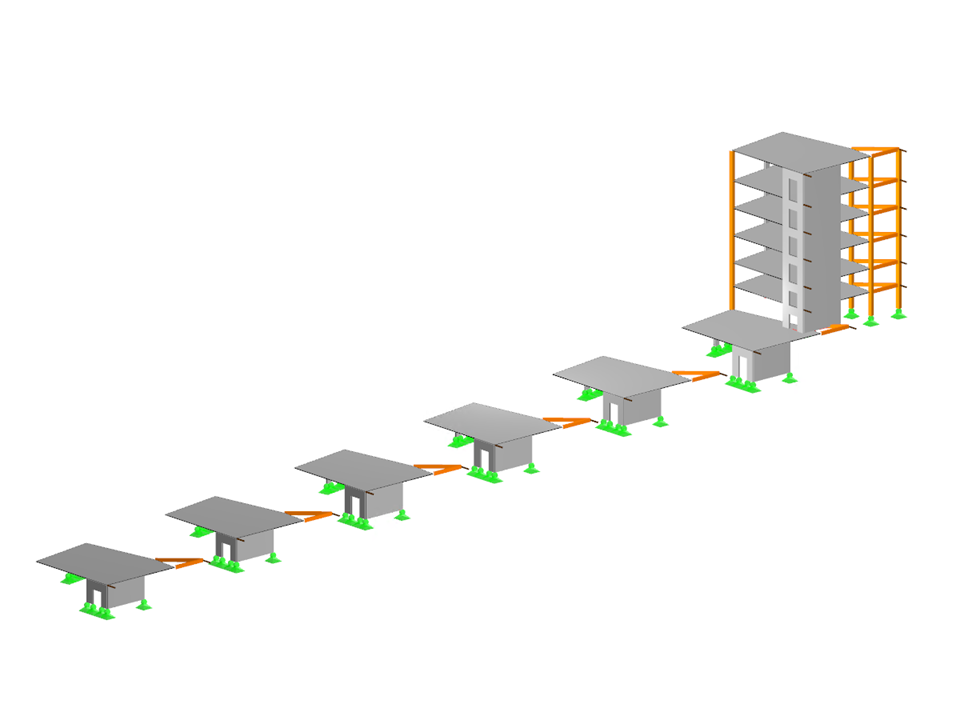

Cross-Laminated Timber Building
No Download Possible
Customer Project / View Only
Number of Nodes | 315 |
Number of Lines | 464 |
Number of Members | 80 |
Number of Surfaces | 108 |
Number of Load Cases | 8 |
Number of Result Combinations | 1 |
Total Weight | 626.798 tons |
Dimensions (Metric) | 17.285 x 152.921 x 24.772 m |
Dimensions (Imperial) | 56.71 x 501.71 x 81.27 feet |
Program Version | 5.23.00 |
