In summer 2012, the first Czech treetop walk was opened in Lipno in the presence of Václav Klaus, then President of the Czech Republic. A path with a length of 2,215 ft leads to the major tourist attraction: the tree tower.
On the top platform, at a height of 131 ft, visitors can enjoy the wonderful view from the wooden lookout tower over the Šumava National Park and the Lipno Dam on the Vltava River. In the center, the tower includes a playground slide of 171 ft in length, representing the longest closed slide in the Czech Republic.
Structural Analysis of Timber Structure and Design
WIEHAG GmbH
Altheim, Austria
http://www.wiehag.com

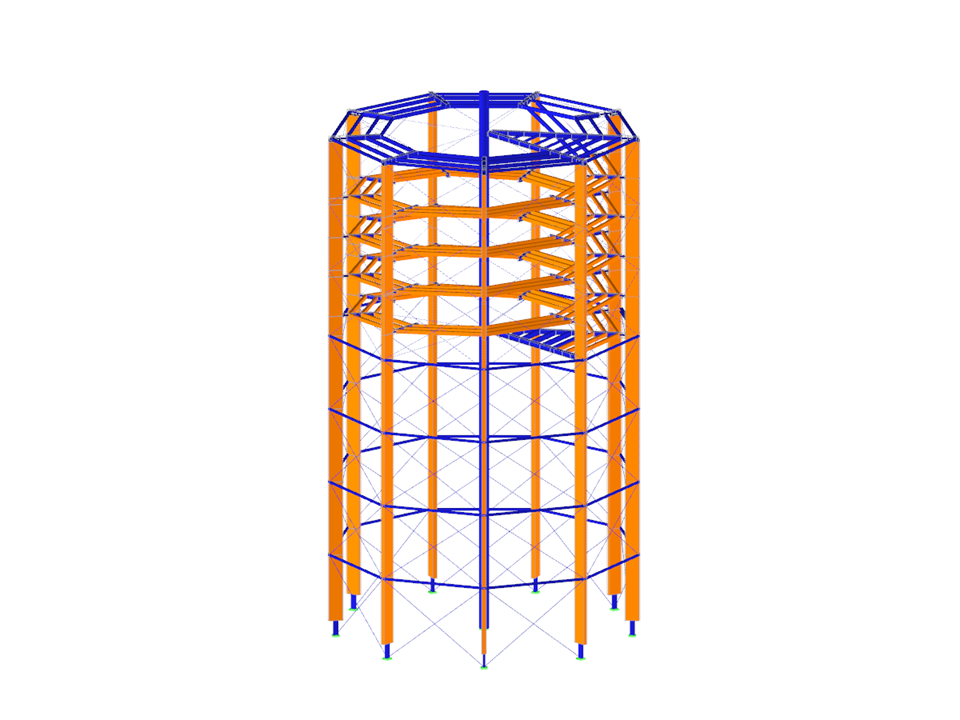

Tree Tower Lipno, Czech Republic
Number of Nodes | 493 |
Number of Members | 866 |
Number of Load Cases | 13 |
Number of Load Combinations | 198 |
Number of Result Combinations | 4 |
Total Weight | 170.715 tons |
Dimensions (Metric) | 24.217 x 24.591 x 44.250 m |
Dimensions (Imperial) | 79.45 x 80.68 x 145.18 feet |
Program Version | 7.04.46 |
