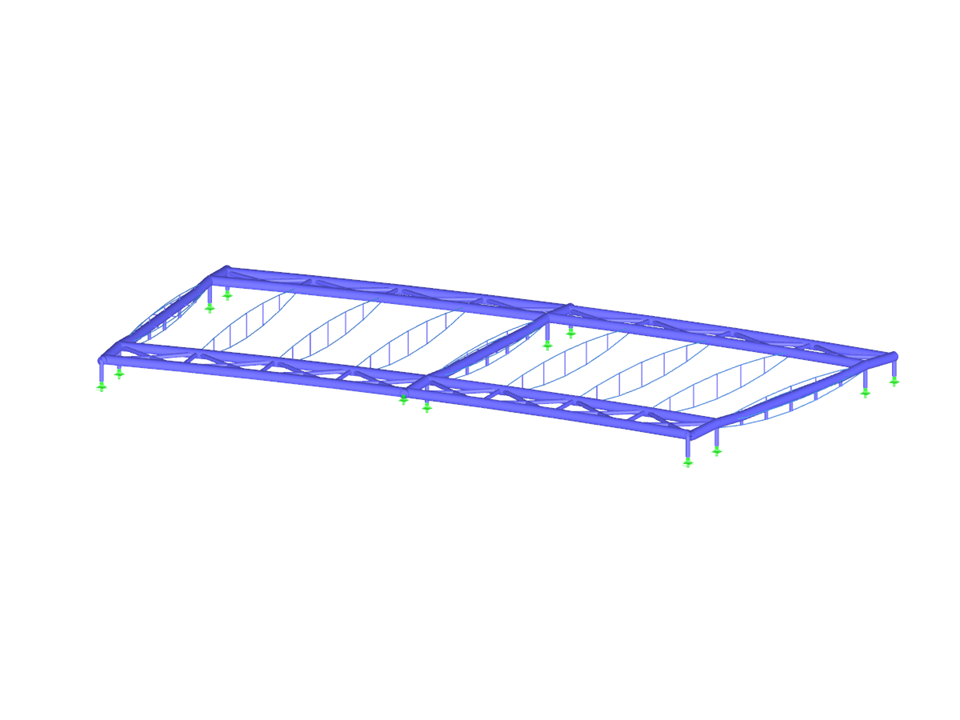

Frame
No Download Possible
Customer Project / View Only
Number of Nodes | 252 |
Number of Members | 401 |
Number of Load Cases | 5 |
Number of Load Combinations | 5 |
Total Weight | 8.800 tons |
Dimensions (Metric) | 18.391 x 10.433 x 1.010 m |
Dimensions (Imperial) | 60.34 x 34.23 x 3.31 feet |
Program Version | 8.01.01 |
