Prismatic folded structure systems | Cross-folded surfaces spanned diagonally over rectangular floor plan | Ridges rising toward center

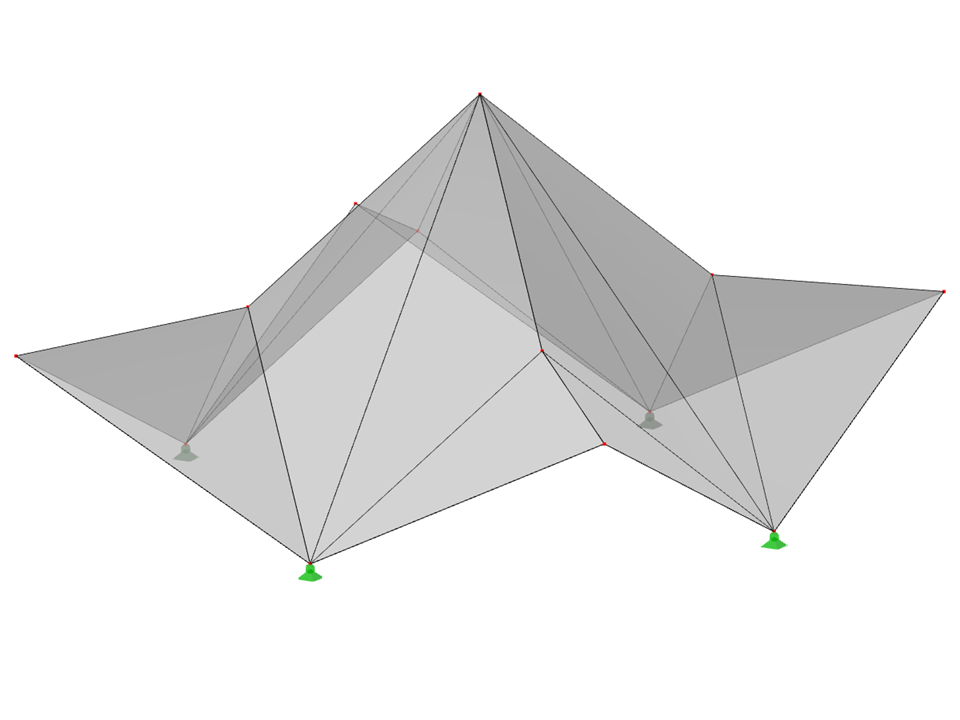

FPC011 | Prismatic Folded Structure Systems. Cross-Folded Surfaces Spanned Diagonally over Rectangular Floor Plan, Ridges Rising Toward Center
Block parameters editable dynamically | |
Number of Nodes | 13 |
Number of Lines | 28 |
Number of Members | 0 |
Number of Surfaces | 16 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 432.171 tons |
Dimensions (Metric) | 20.000 x 12.000 x 20.000 m |
Dimensions (Imperial) | 65.62 x 39.37 x 65.62 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
