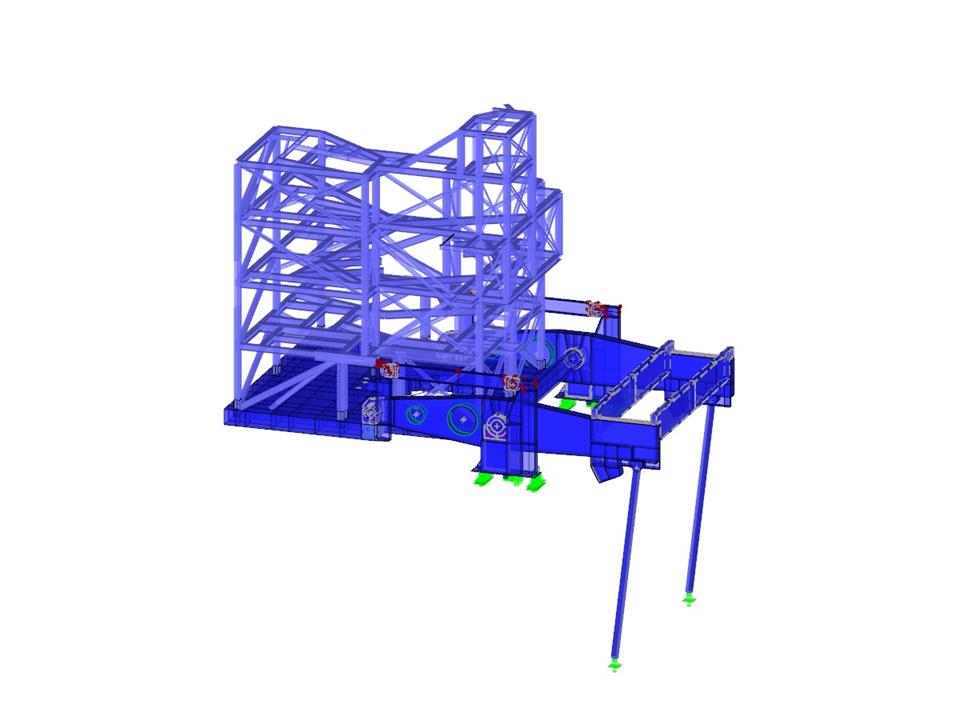

The designed lift table is movable vertically and has a counterweight. Due to the parallelogram, the table remains horizontal in any position. The structure is approximately 61 ft long, 37.4 ft wide, and 71.8 ft high. Various equipment is installed in the rising steel structure. For the structure, mainly Russian cross-sections according to the GOST standard from the RFEM cross-section library were used. The RFEM add-on module RF-STEEL was used for the design. The total weight of the structure with ballast is approximately 1,102.3 tons.
Ingenieurbüro Jürgen Ehlenz
Anemonenstraße 4-6
D-66701 Beckingen, Germany
www.ibehlenz.de
Ingenieurbüro Jürgen Ehlenz
Anemonenstraße 4-6
D-66701 Beckingen, Germany
www.ibehlenz.de
Steel Lift Table
No Download Possible
Customer Project / View Only
Number of Nodes | 6980 |
Number of Lines | 9353 |
Number of Members | 1703 |
Number of Surfaces | 2845 |
Number of Solids | 182 |
Total Weight | 239.294 tons |
Dimensions (Metric) | 18.630 x 11.279 x 21.895 m |
Dimensions (Imperial) | 61.12 x 37 x 71.83 feet |
Program Version | 4.06.00 |
