There are new categories of the 'Concrete Design' results in the toolbar list that control the member results.
Design Ratios on Members

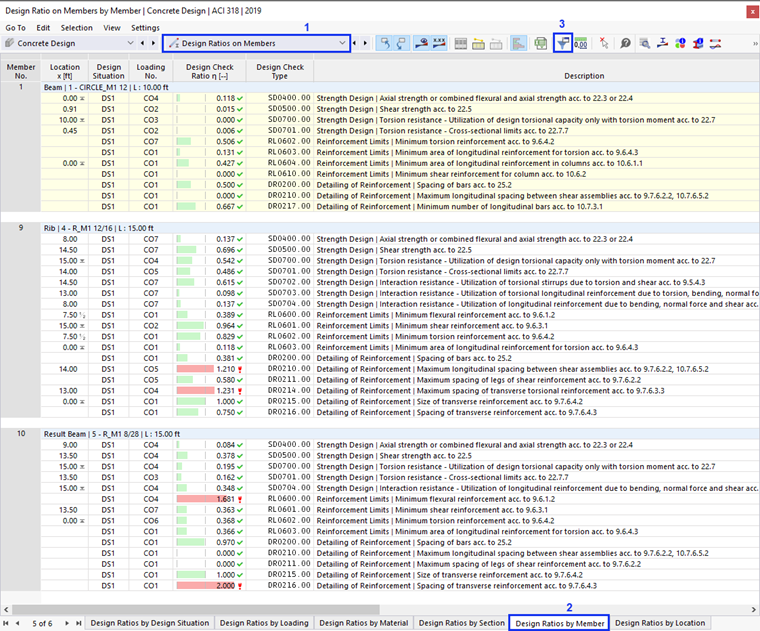

Select the Design Ratios on Members category (1). The design ratios of each member are listed by different criteria in five tables. Set the Design Ratios by Member table (2).
The values listed in the 'Design Check Ratio' column represent the quotients of the strength design checks ('SD') and the checks of detailing ('RL' and 'DR'). For example, 'SD0500.00' represents the shear resistance check according to ACI 318 section 22.5.
The design of the column and is verified, but the ratios of the rib and the result beam require attention. The unmet design checks are to be examined graphically later (see Chapter Graphical Results).
To reduce the contents of the table, click the
button on the table toolbar (3). The 'Result Table Manager' is opened.

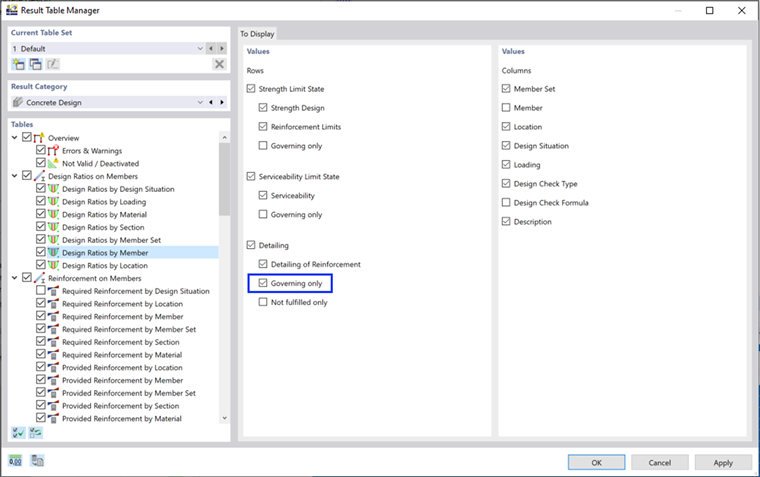

Select the Governing only check box of the 'Detailing' rows. When you click OK, the table is reduced to the essential results.
To check the strength design details of the column, for example, select the first line of its results (1). 'SD0400.00' represents the check of the axial strength according to ACI 318 section 22.3 or 22.4. Then click the
button on the table toolbar (2).
The 'Design Check Details' window opens.
This window presents all parameters of the design and the relevant equations. By clicking the
button in the bottom-right area, you can switch between values or symbols displayed in the design formulas.
To print the details, click the
button next to the
button. Select the Print Graphics to Printout Report option. The equations of this design check are exported to the report without opening it.
Return to the tables by clicking Close.
Reinforcement on Members

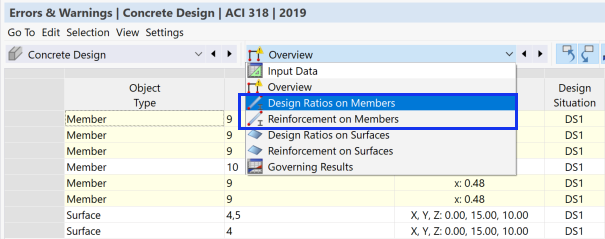

On the table toolbar, select the Reinforcement on Members category as seen in the Categories for member results image (1). The reinforcement of each member is listed in several tables by different criteria again. Set the Required Reinforcement by Member table (2).
In this table, the extreme values of the required reinforcement are listed for every member. The maximum areas of every reinforcement category are labelled by
symbols. You can also examine which load combination requires the maximum reinforcement.
As before, you can check the details of the design in the 'Design Check Details' dialog box (see the Design check details image): Select a line and then click the
button on the table toolbar.
To check the stresses of the rebars in a diagram, select the line of the required top reinforcement area of the rib member no. 9, for example (3). Then click the
button on the table toolbar (4).
The 'Result Diagrams in Section' window opens.
The diagram shows the stresses of the rebars and the concrete stresses. The toolbar buttons enable you to control the graphics and print the diagram.
Return to the tables by clicking Close.
