导入 RSECTION 截面

如何将 RSECTION 截面导入 RFEM 6/RSTAB 9 中?


回复:

从 RFEM 6.02.0071 版本开始,RSECTION 截面可以通过德儒巴中心导入到 RFEM 中(图 01)。

In order to access the file in the Dlubal Center, the RSECTION file can be saved in the Dlubal folder (Image 02). Make sure the file is saved inside the “examples” folder.

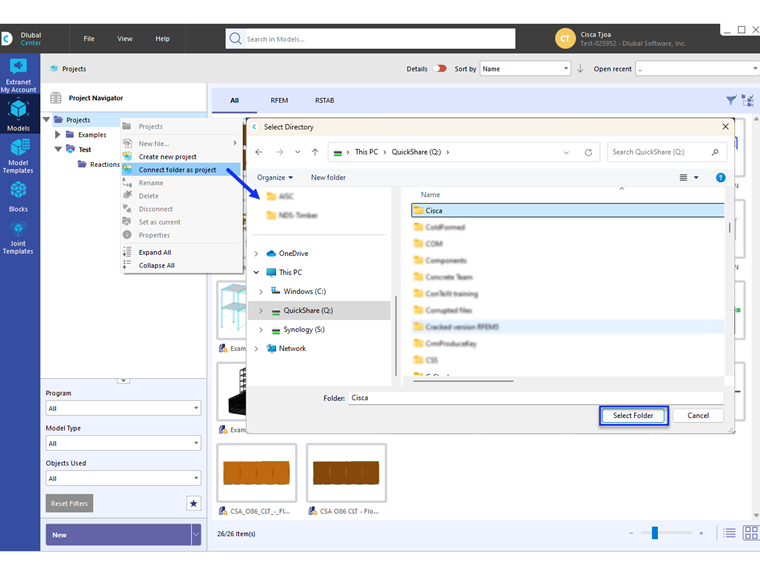

The file can also be saved in a different location by choosing the option to Add existing project and selecting the relevant folder (Image 03). Do not use the Create new project option.

The RSECTION file can then be found under Models in the "Projects" folder (Image 01).
