圆形板的径向和切向配筋

与圆形板的正交视图相比，是否可以查看切向和径向分析结果以及配筋要求？

回复:

为了显示圆形板的静力分析结果和配筋需求，必须调整有限元网格坐标轴。 Since the FE mesh axes follow the surface's local axes, these axes can be oriented toward a specific point, such as the circle's center.

To set this up, edit the surface and enable the "Specific axes" checkbox. This will activate a new "Input axes" tab with several options for orienting the surface's local axes.

Select the "Axis directed to point" option and the relevant axis x or y, then use the graphical selection tool to choose the center of the circular area as the first point. The second point will automatically be defined using a vertical Z-direction vector.

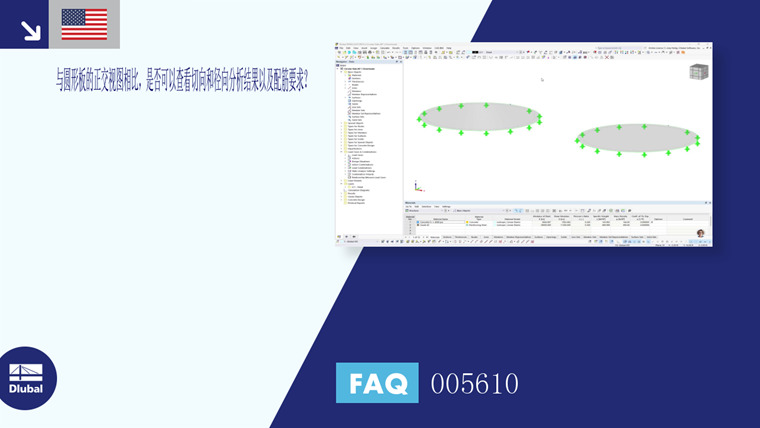

FAQ 005610 | Is it possible to view the tangential and radial analysis results and reinforcement requirements rather than orthogonal for a circular slab?

面特定轴和输入轴输入选项

After running the calculation, the static analysis results (e.g., internal forces) and the Concrete Design reinforcement requirements will be displayed radially and tangentially.
