Transfer of Foundation Dimensions in Base Plate Design

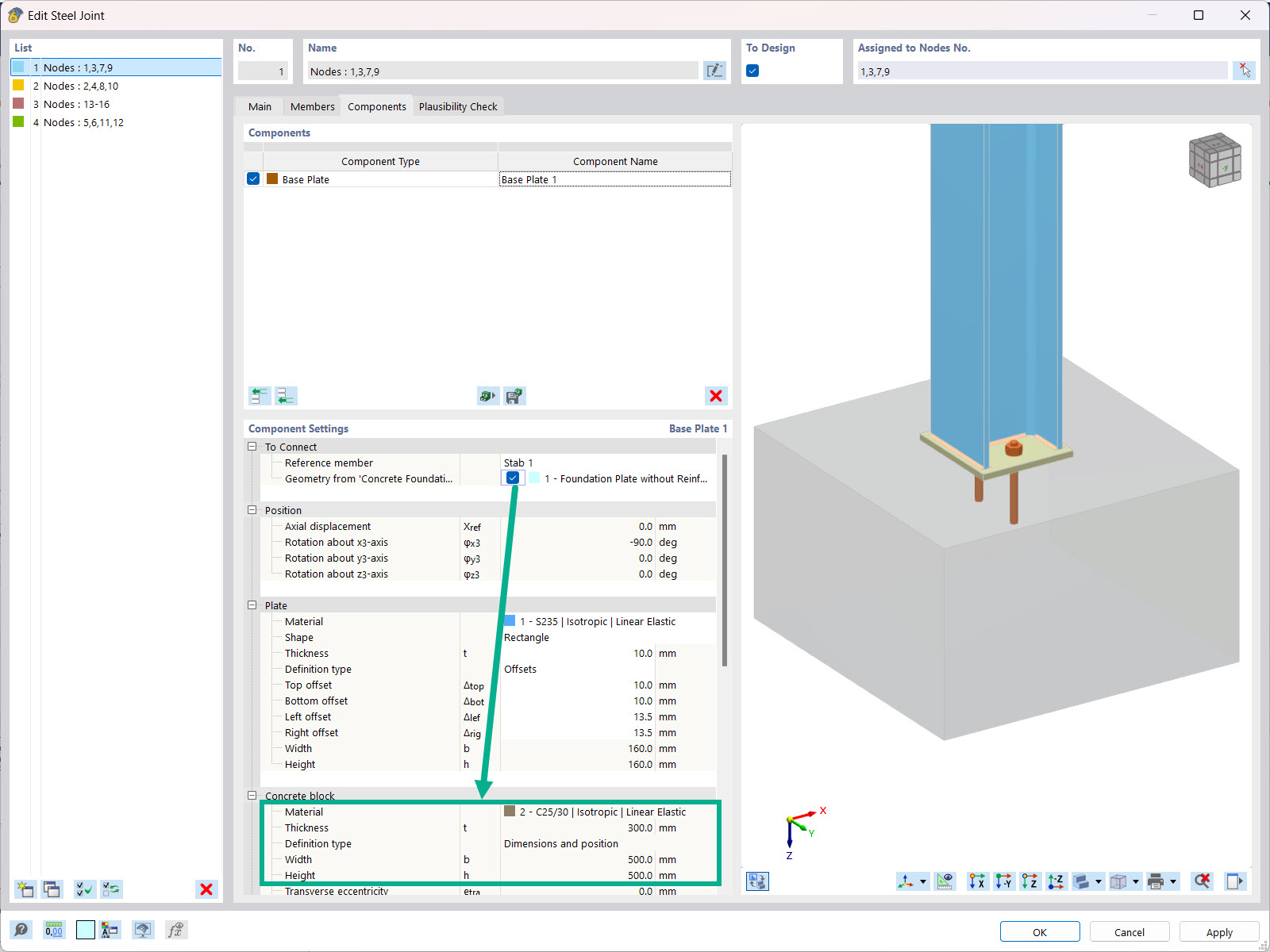

When using the “Base Plate” component in the Steel Joints add-on, you can adopt the foundation dimensions and materials defined using the Concrete Foundations add-on with just one click.

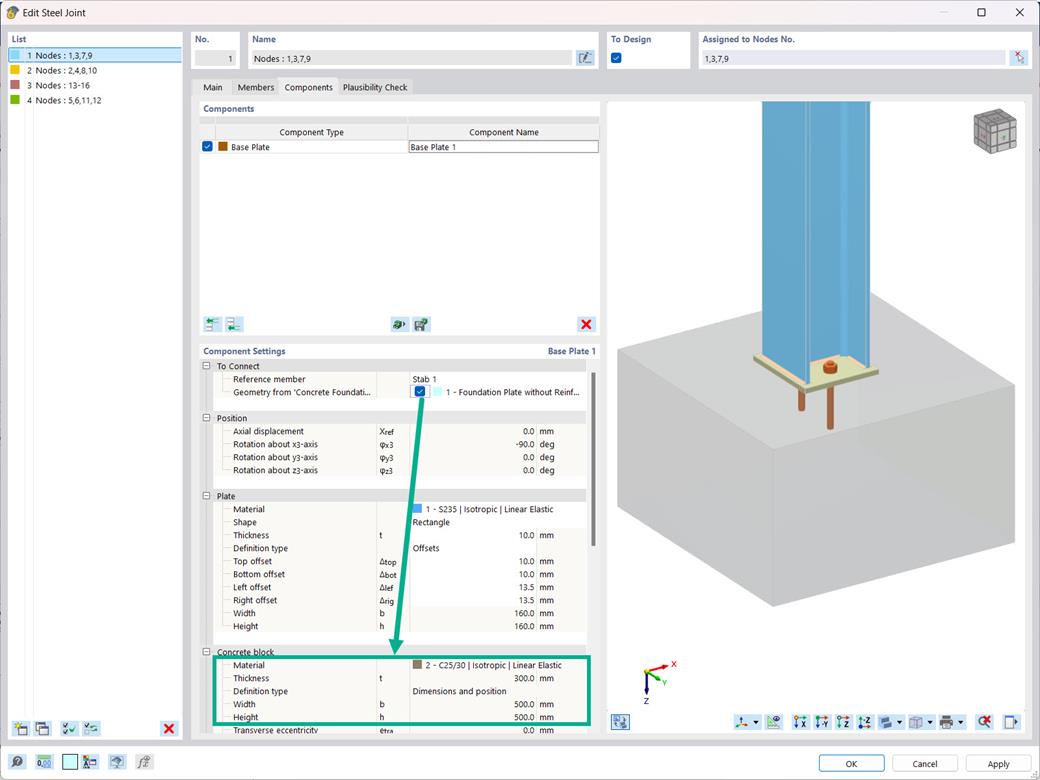

View of the transfer of foundation dimensions in the base plate for foundation design
Foundation Dimensions in Base Plate Component
