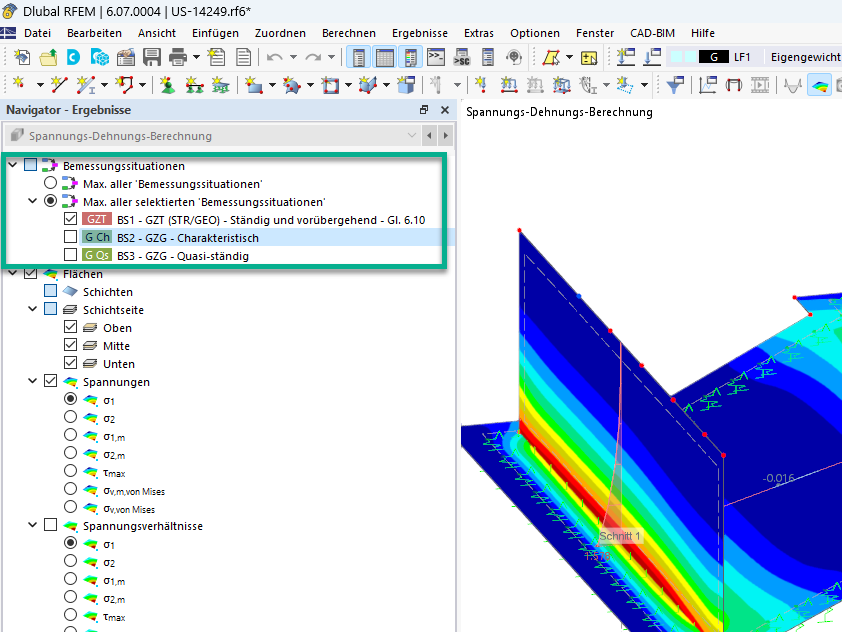

In the Navigator – Results, you can select the design situations for which you want to display the add-on results graphically.
