"Hoek-Brown" Material Model for Geotechnical Analysis

In the Geotechnical Analysis add-on, the Hoek-Brown material model is available. The model shows linear-elastic ideal-plastic material behavior. Its nonlinear strength criterion is the most common failure criterion for stone and rocks.

You can enter the material parameters using

Rock parameters directly, or alternatively via
GSI classification.

described.

Weiterführende Informationen zu diesem Materialmodell und der Definition der Eingabe in RFEM finden Sie im entsprechenden Kapitel im Online-Handbuch für das Add-On Geotechnische Analyse: Hoek-Brown Model .

Feature 002795 | "Hoek-Brown" Material Model for Geotechnical Analysis

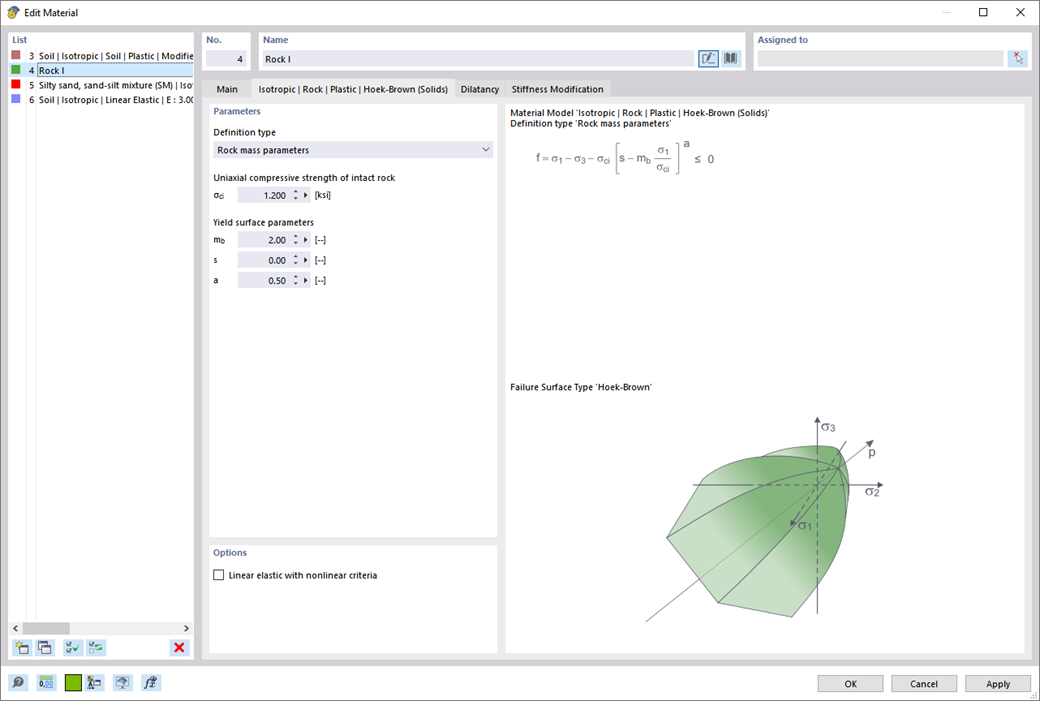

Input Dialog Box – Hooke-Brown Model – Rock Mass Parameters
