Answer:

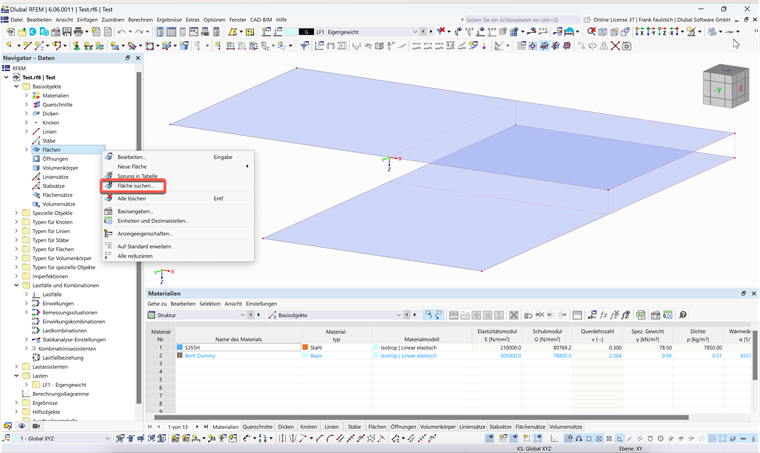

Right-click the "Surfaces" entry in the Data navigator and select "Find Surface" from the menu.

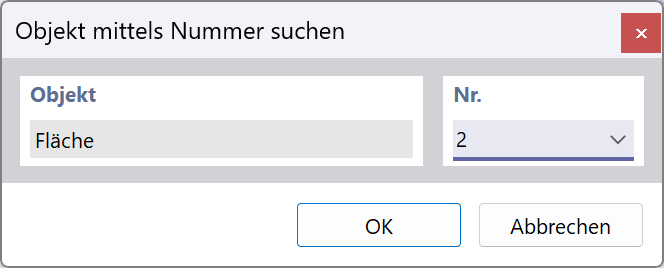

Enter the surface number and click OK.
The surface is indicated by a red arrow in the graphic.
