Answer:

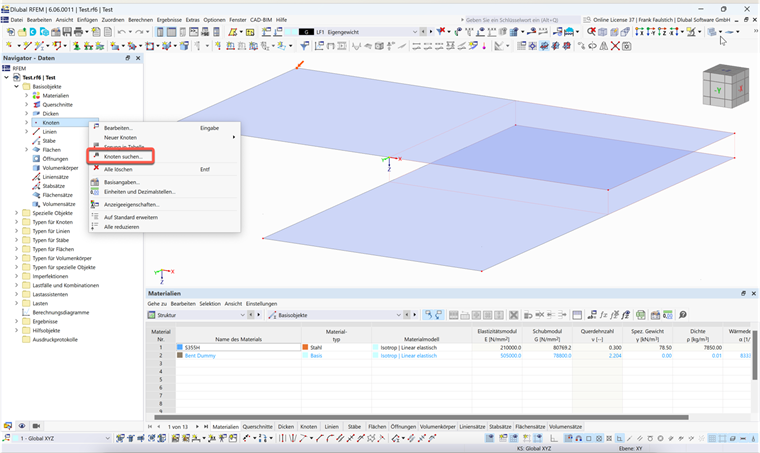

Right-click the "Nodes" entry in the Data navigator and select the "Find Node" entry from the menu.

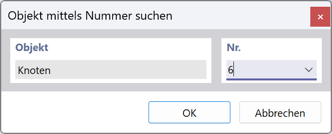

Enter the node number and click OK.

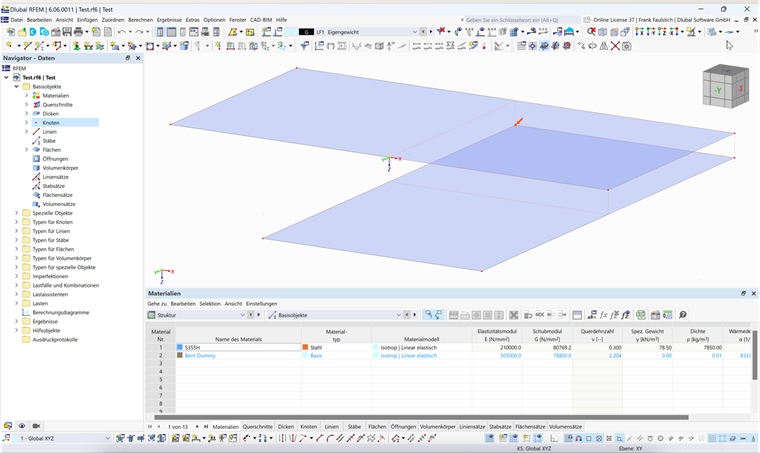

The node is indicated by a red arrow in the graphic.
