Effective Width of Rib

How can I remove or reduce the effective width of a rib in RFEM 6?


Answer:

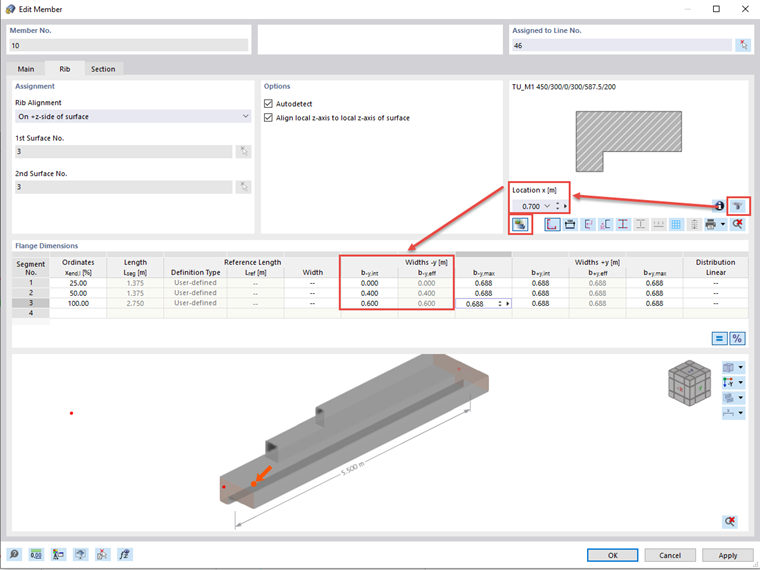

To do this, double-click the member using the left mouse button and switch to the "Rib" tab in the "Edit Member" dialog box.

Subsequently, you can adjust the effective width for each side of the rib using the parameters in the flange dimensions table.
