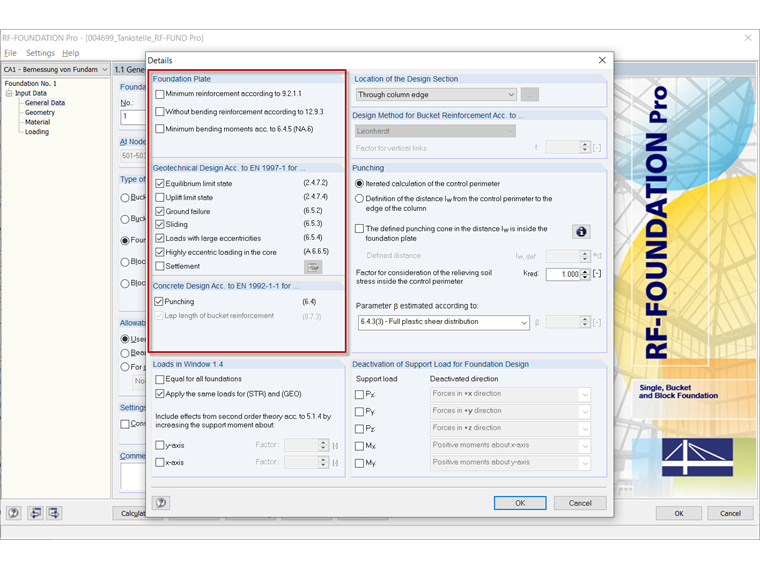

No, RF-/FOUNDATION Pro does not perform crack width analysis.
To design a larger foundation plate, where crack width control may be necessary for the restraint due to hydration heat formation, you can use RF‑CONCRETE Surfaces. RF-CONCRETE Surfaces allows for crack width calculation.
Mr. Kieloch provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
