Answer:

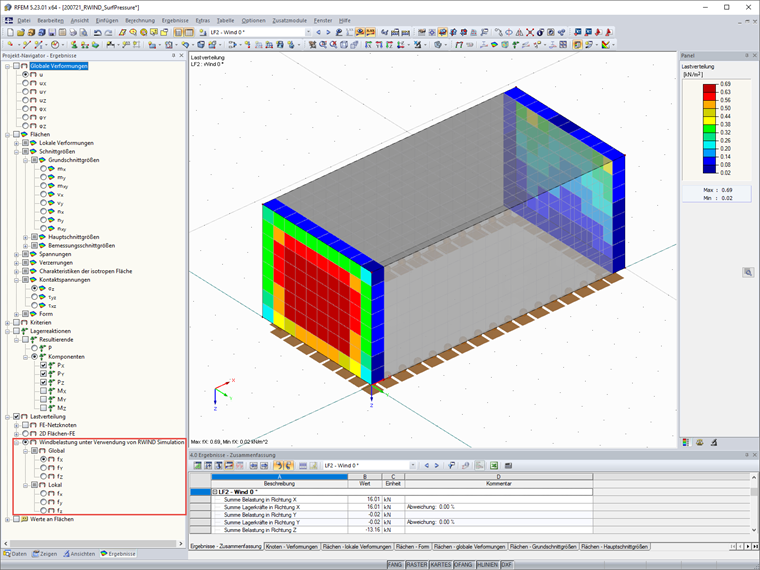

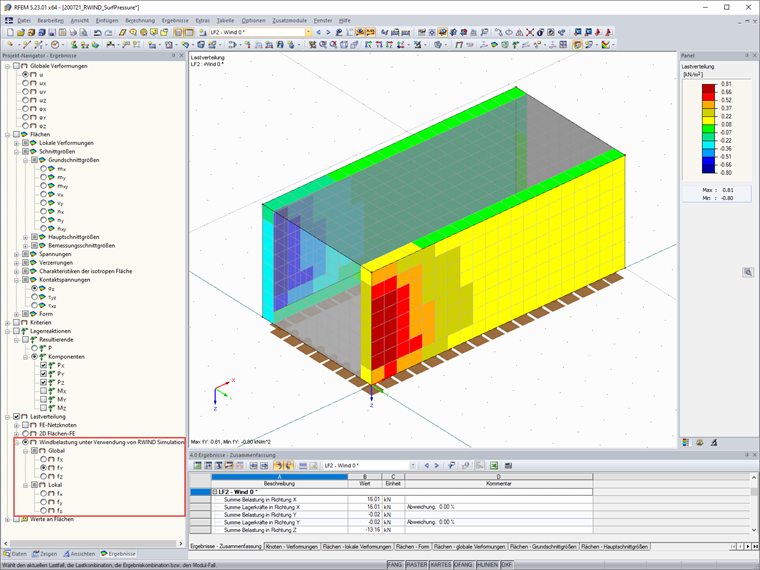

Project Navigator - Results provides a special option to evaluate the results of the RWIND Simulation loads: Activate the results of "Distribution of load" and then select the "Wind load using RWIND Simulation" option.
