Definition of Average Region over Circumference of Pipes

How can I define an average region on pipes over the entire circumference?


Answer:

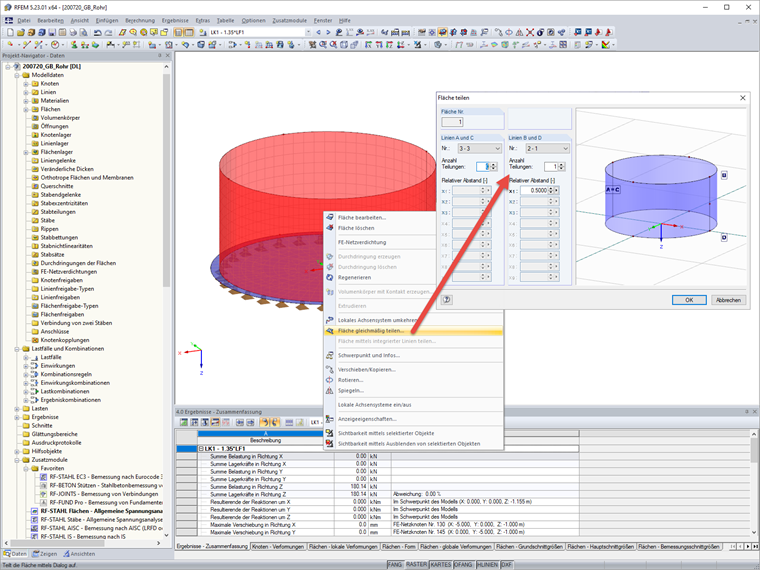

If you have modeled your pipe surface as a quadrangle surface, you can achieve this by splitting the surface at least once.

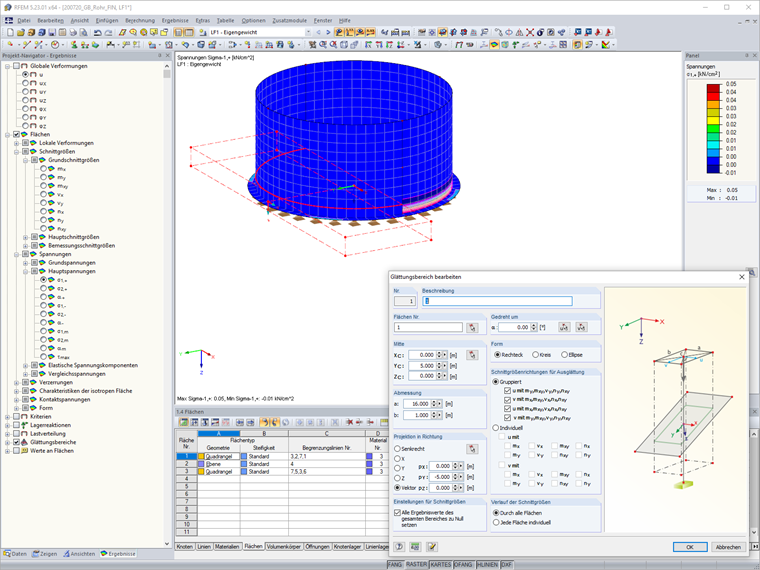

Then, define a new average region for the surface by selecting the center, defining the dimension, specifying the vector, and determining the averaging type you want.

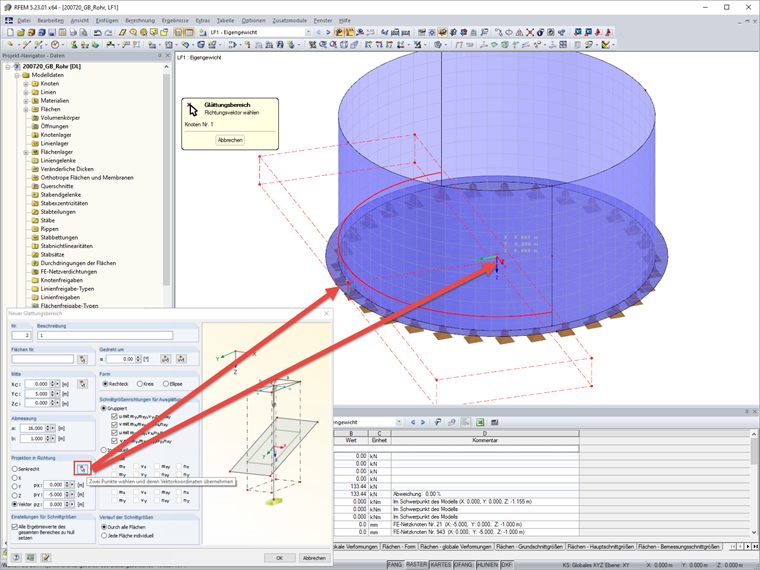

You can easily define the vector by picking two points.
