Answer:

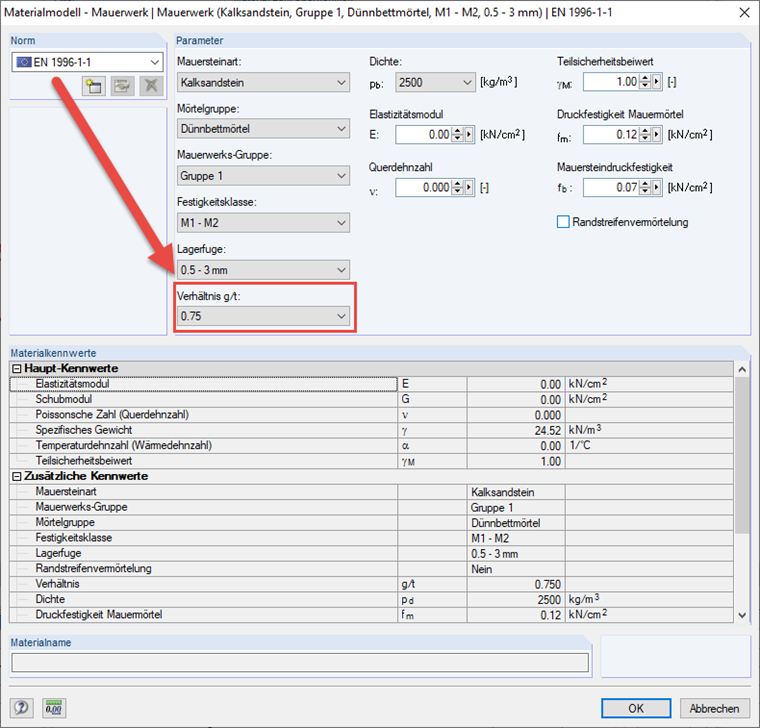

The ratio g/t is the ratio between the total width of the mortar strip and the thickness of the masonry wall. The ratio of the butt joint mortar should not be less than 0.4, in accordance with the standard specification.
Question
In the material library for masonry, there is the "g/t" ratio. What does this mean exactly?
In the material library for masonry, there is the "g/t" ratio. What does this mean exactly?
