Answer:
It is not possible to transfer a printout report directly from one model to another. However, creating a printout report template allows you to create similar reports quickly.

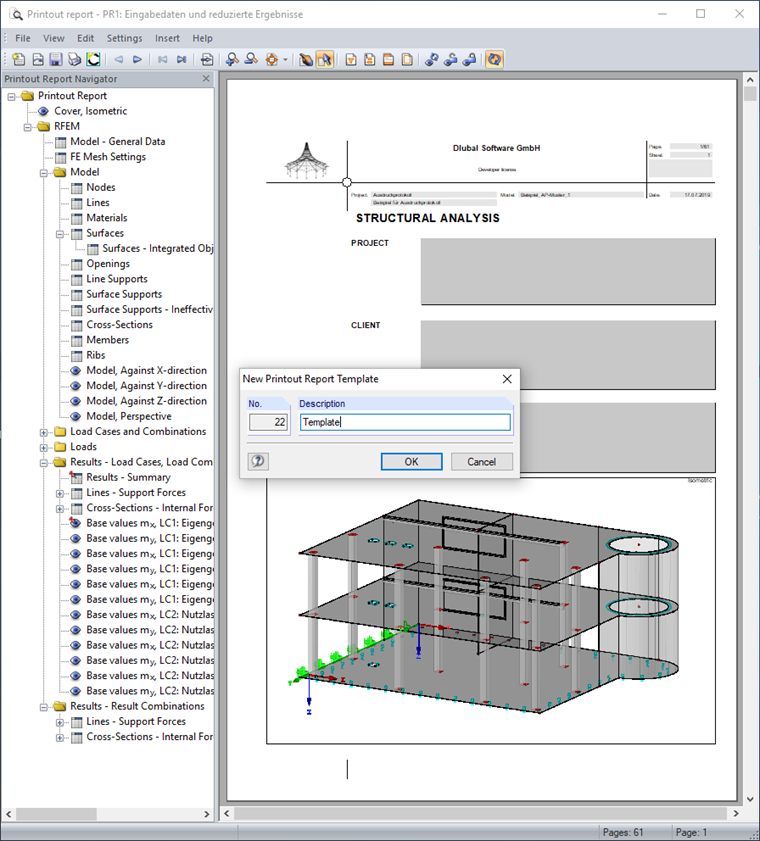

Thus, you can also create a new printout report template from an existing printout report. In addition to the content selection and the page settings, it is possible to include additional text and graphics printed in the report. However, the many dependencies when creating the graphics, such as visibilities and model position, require subsequent editing of the graphics in most cases. For different structural systems, we recommend recreating the graphics using the mass print function.
You can save a lot of time when processing similar models using the printout report templates. The example video shows the creation of a printout report from a similar model using the printout report template function.
The printout report templates are saved in the RFEMProtocolConfig.cfg file or the RSTABProtocolConfig.cfg file. This can be found in the master data folder of RFEM or RSTAB:
- C:\ProgramData\Dlubal\RSTAB 8.xx\General Data
- C:\ProgramData\Dlubal\RFEM 5.xx\General Data
