Calculation of Deformation in Cracked State

How can I determine the deformation in the cracked state of concrete using the required minimum reinforcement, and/or required calculated reinforcement?

Answer:

Both options at the bottom of the "Serviceability" tab of Window 1.1 control whether the design checks are performed according to the analytical or the nonlinear method.

FAQ|001483
EN-US | Flag FAQ
[EN] FAQ 001483 | How can I determine the deformation in the cracked state of concrete using the ...

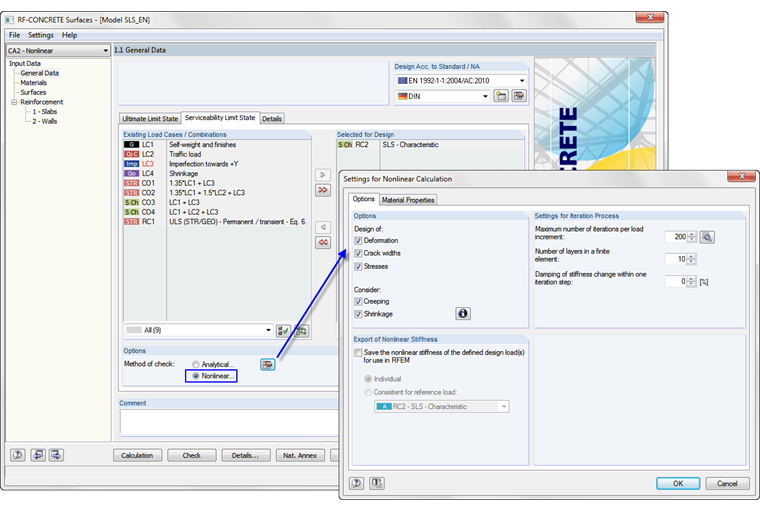

Nonlinear Design Method
Nonlinear Design Method

  1. For the nonlinear serviceability limit state design, it is necessary to specify the provided longitudinal reinforcement.
    Specifying Longitudinal Reinforcement
    Specifying Longitudinal Reinforcement
  1. The "Use required reinforcement for design of serviceability" option allows you to carry out the SLS design using the amount of reinforcement determined for the ultimate limit state.
    Applying Required Reinforcement
    Applying Required Reinforcement

More information can be found in the manual of RF‑CONCRETE Surfaces.
