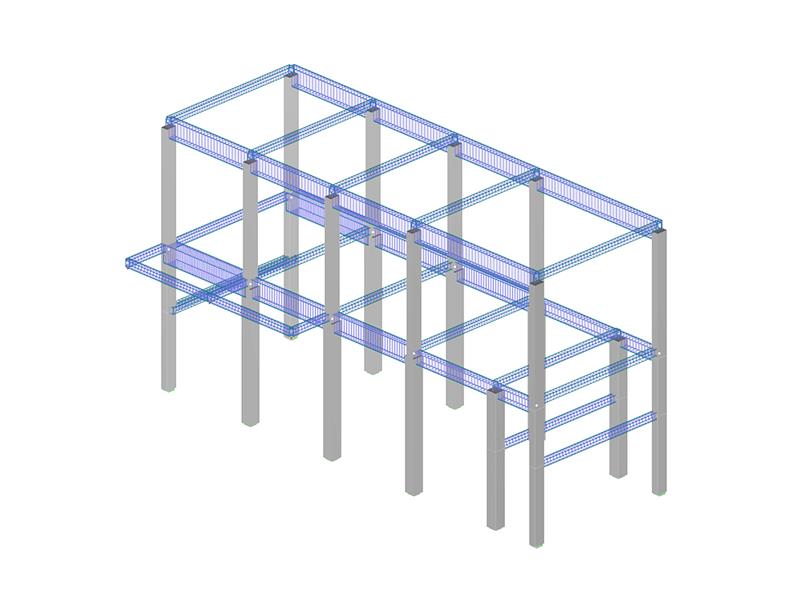

RSTAB 8 Add-on Modules – Reinforced Concrete Structures
The add-on modules for reinforced concrete structures allow for design of members and surfaces according to various international standards. Furthermore, it is possible to perform a nonlinear analysis (cracked concrete) and design of prestressed concrete structures.
CONCRETE Add-on Module for RSTAB 8
CONCRETE is an RSTAB 8 add-on module for reinforced concrete design of member elements. It allows you to evaluate the RSTAB internal forces in different design cases. Thus, you can combine any members, load cases, load combinations, and result combinations for one design process in individual CONCRETE cases. In this way, you can efficiently calculate design alternatives with different boundary conditions or modified cross-sections, for example.
CONCRETE Columns Add-on Module for RSTAB 8
The CONCRETE Columns add-on module extends the main program RSTAB 8 by a powerful tool for reinforced concrete design. CONCRETE Columns allows you to perform the ultimate limit state for rectangular or circular compression elements according to the model column method or the method with nominal curvature.
Module Extension ACI 318 for RSTAB 8
ACI 318 is a module extension for designing reinforced concrete structures according to the American standard ACI 318‑19 for the RSTAB 8 program. This extension includes various add-on modules, such as CONCRETE, which allow for a precise calculation and design in compliance with standards. It provides user-defined material libraries and imperial unit system.
Module Extension CSA A23.3 for RSTAB 8
Use CSA A23.3 for RSTAB 8 to extend the range of standards for reinforced concrete design by the Canadian standard CSA A23.3.
Module Extension EC2 for RSTAB 8
Use EC2 for RSTAB 8 to you extend the range of standards to include the reinforced concrete design according to EN 1992‑1‑1: 2004 + A1:2014 (Eurocode 2), including the integrated National Annexes (NA).
Module Extension DIN 1045-1 for RSTAB 8
The module extension DIN 1045‑1 for the RSTAB 8 software allows you to design reinforced concrete structures according to the German standard DIN 1045‑1. This extension provides you with advanced features for reinforced concrete design, including various add-on modules, such as CONCRETE, CONCRETE Columns, PUNCH Pro, and more.
Module Extension SIA 262 for RSTAB 8
The module extension SIA 262 for the RSTAB 8 software was specially developed for the design of reinforced concrete structures according to the Swiss standard SIA 262:2013. The extension includes add-on modules such as CONCRETE and provides a wide range of features for reinforced concrete design, including material libraries and specific design methods.
Module Extension GB 50010 for RSTAB 8
GB 50010 is a module extension for the RSTAB 8 program. This extension allows for the design of reinforced concrete structures according to the Chinese standard GB 50010‑2010. It includes add-on modules such as CONCRETE and provides features for seismic design according to GB 50011‑2010.
FOUNDATION Pro Add-on Module for RSTAB 8
The FOUNDATION Pro add-on module allows you to design single, bucket, and block foundations for all support forces arising in your RSTAB model. The reinforced concrete design of the foundation is performed in the FOUNDATION Pro add-on module according to the standard EN 1992‑1‑1:2004 + A1:2014. The geotechnical design checks are performed according to the standard EN 1997‑1. In addition to the support forces from RSTAB 8, the module allows you to specify loads to be integrated into the design of a foundation. FOUNDATION Pro provides a reinforcement concept for the upper and lower plate reinforcement.
