| Structural Engineering | Ingenieurbüro Neulichedl & Partner I-39012 Merano, Schafferstraße 37 Tel 0039 0473 238041 Fax 0039 0473 258392 E-mail: neulichedl@rolmail.net |
| Investor | Autonomous Province of Bolzano, Italy |

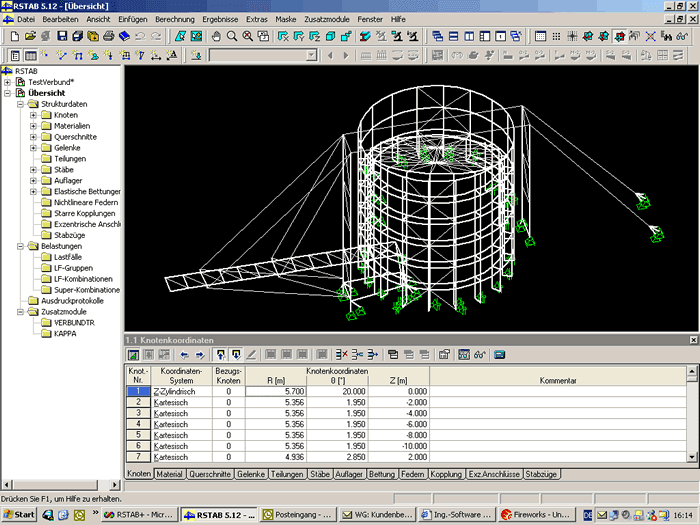

Aviary in the Gardens of Trauttmansdorff Castle in Meran, Italy
The cylindrical steel structure of the aviary consists of an upper column in the form of an inclined spoked wheel and a base with anchoring spans as an observation platform.
More about the Gardens of Trauttmansdorff Castle: www.trauttmansdorff.it
