Planar Truss Under Bending and Torsion

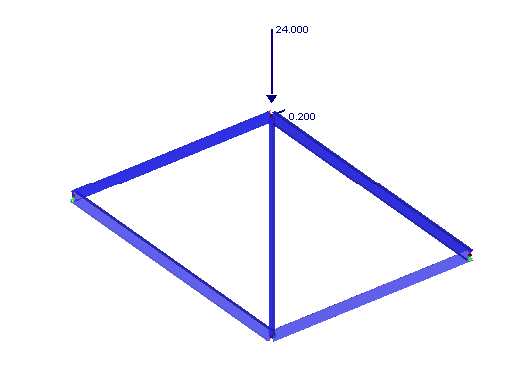

A planar truss consisting of four sloped members and one vertical member is loaded at the upper node by means of a vertical force and an out-of-plane force. Assuming the large deformation analysis and neglecting the self-weight, determine the normal forces of the members and the out-of-plane displacement of the upper node.
