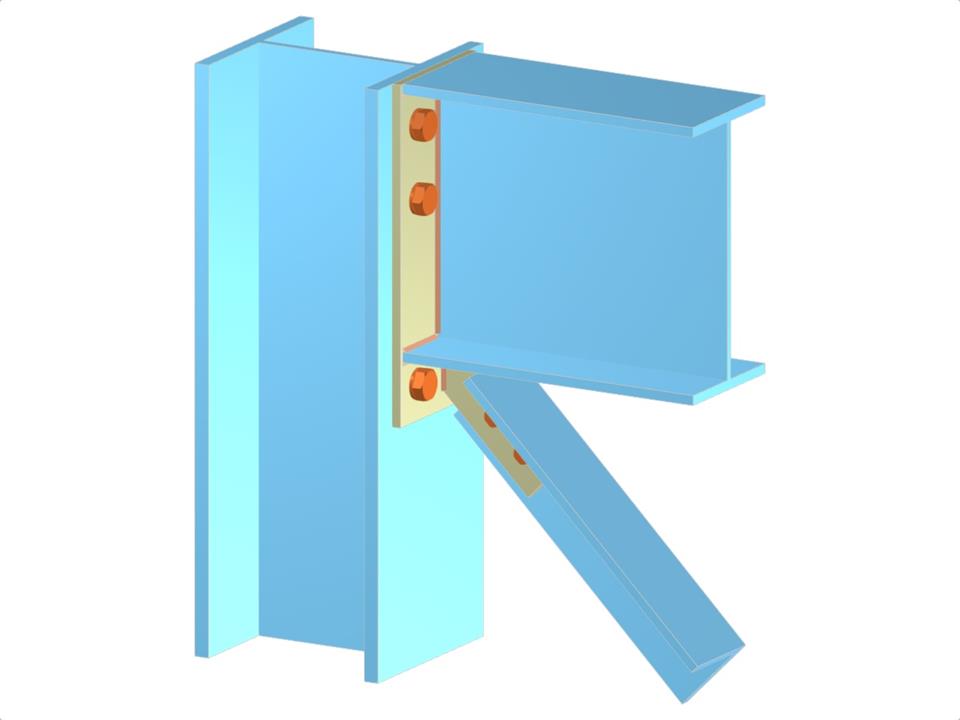

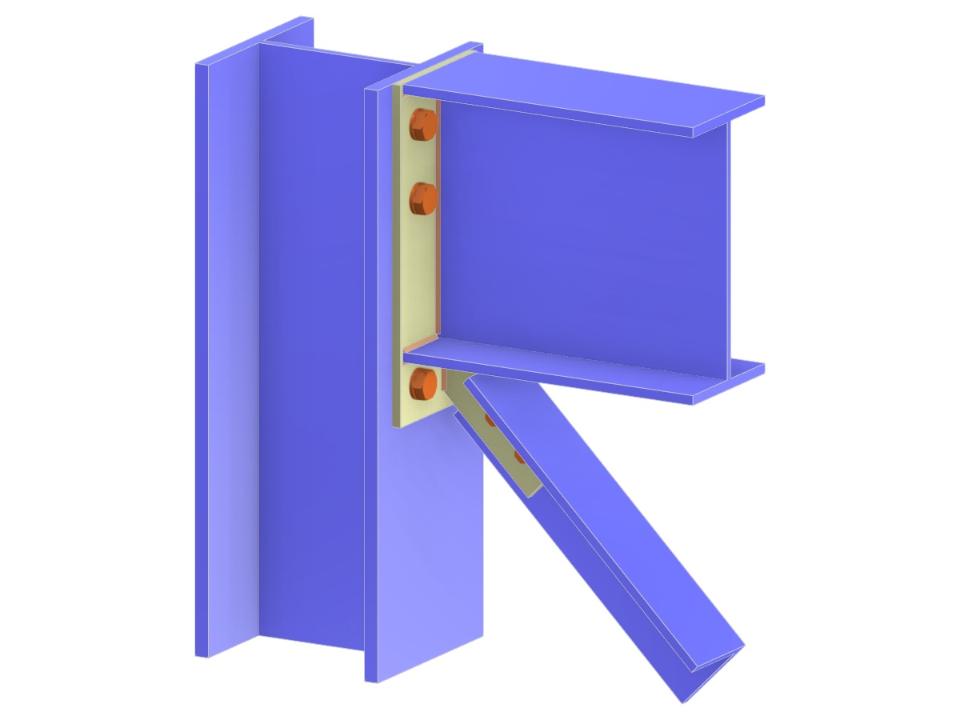

This model illustrates a one-sided beam-to-column connection featuring an extended end plate and a fin plate for the diagonal. It integrates a beam and the diagonal of vertical bracing to the column flange to ensure efficient load transfer. The bolted connection secures the system and provides resistance against bending about the column’s major axis. Detailed technical drafting shows accurate geometry, bolt arrangements, and stiffener configurations to support precise design verification. All essential connection characteristics are clearly delineated for reliable simulation and analysis.
One-Sided Beam Connection with Extended End Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 0,480 x 0,490 x 0,000 m |
| Dimensions (Imperial) | 1.57 x 1.61 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
