Composite Kranhaus (crane house) made of steel and reinforced concrete
Use of load transfer surfaces for modeling glass facades
Multiple use of the snow load wizard in combination with the combination wizard for creating exclusive load cases
Use of the RWIND add-on due to the extraordinary building structure
Use of trusses for unloading floor slabs with large spans

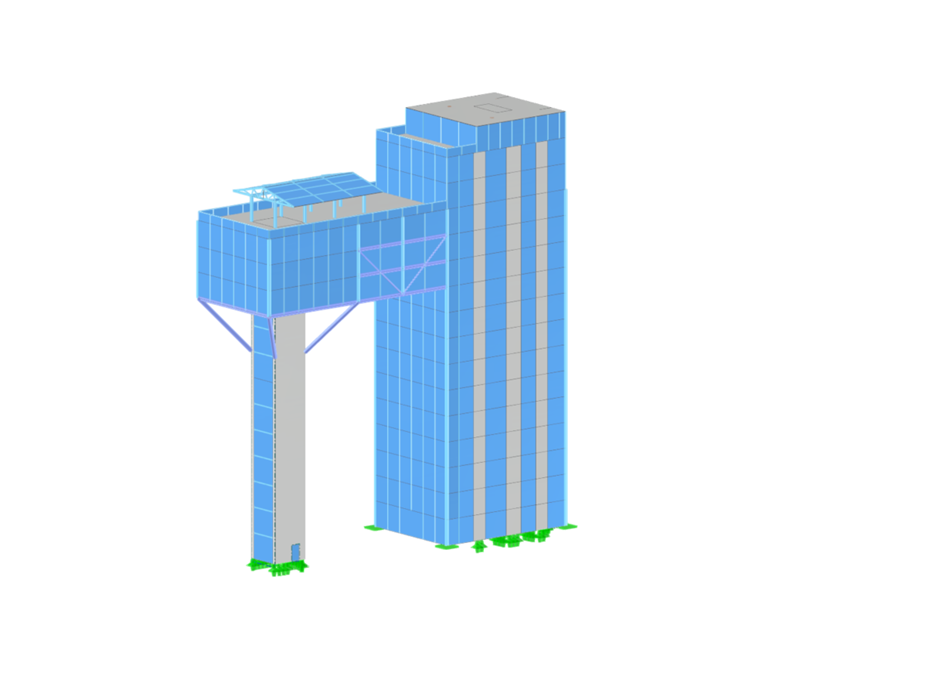

Kranhaus
| Number of Nodes | 1469 |
| Number of Lines | 2499 |
| Number of Members | 584 |
| Number of Surfaces | 734 |
| Number of Solids | 0 |
| Number of Load Cases | 11 |
| Number of Load Combinations | 1270 |
| Number of Result Combinations | 0 |
| Total Weight | 5667.876 tons |
| Dimensions (Metric) | 15.000 x 56.000 x 50.000 m |
| Dimensions (Imperial) | 49.21 x 183.73 x 164.04 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
