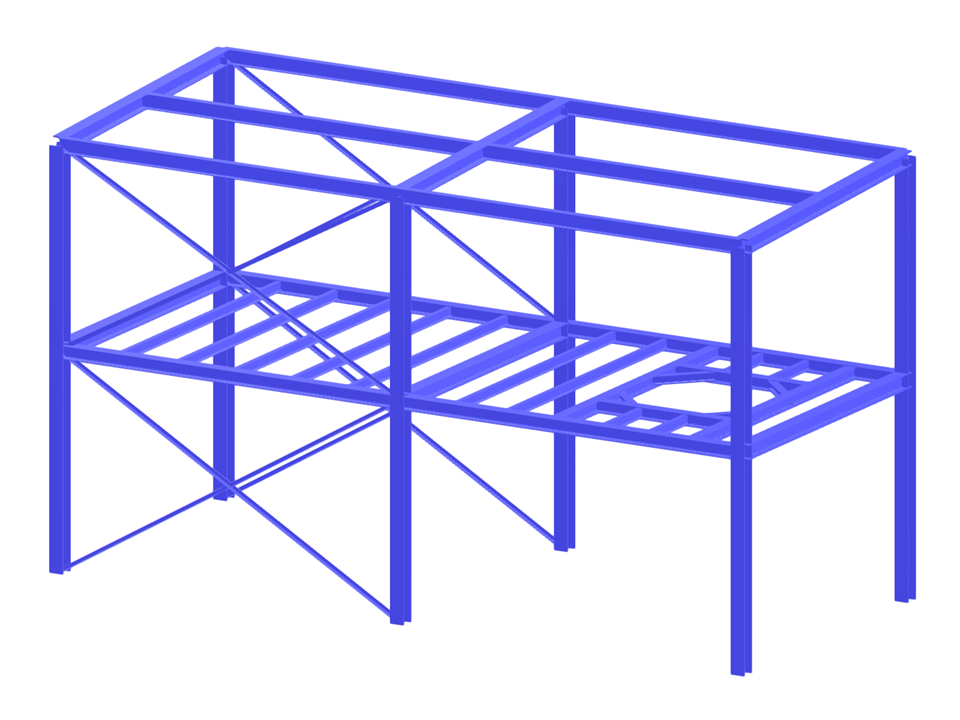

Two-story steel structure with steel joints and steel and connection design.
Model Used in
- Modeling and Design of Steel Structures in RFEM 6 | Part 1: Modeling, Load Input
- Modeling and Design of Steel Structures in RFEM 6 | Part 2: Combinations, Design, Documentation
- Webinar | Modeling and Design of Steel Structures in RFEM 6 | Part 1: Modeling, Load Input
- Webinar | Modeling and Design of Steel Structures in RFEM 6 | Part 2: Combinations, Design, Documentation
Steel Frame
| Number of Nodes | 59 |
| Number of Lines | 77 |
| Number of Members | 77 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 179 |
| Number of Result Combinations | 0 |
| Total Weight | 9.475 tons |
| Dimensions (Metric) | 12.000 x 7.000 x 5.000 m |
| Dimensions (Imperial) | 39.37 x 22.97 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
