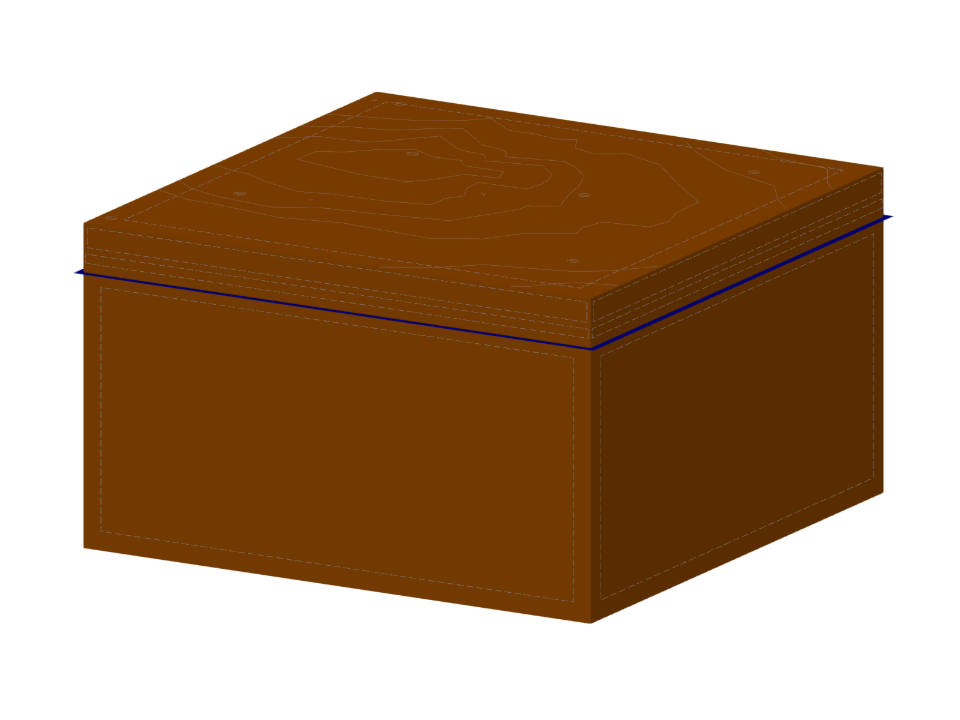

Soil boring logs placed on the basis of a background layer & a solid soil generated from the profiles
Soil Massif
Number of Nodes | 20 |
Number of Lines | 32 |
Number of Members | 0 |
Number of Surfaces | 17 |
Number of Solids | 3 |
Number of Load Cases | 2 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 59840.000 tons |
Dimensions (Metric) | 41,000 x 23,100 x 41,000 m |
Dimensions (Imperial) | 134.51 x 75.79 x 134.51 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
