Velodrome Project, Paraguay
Structural Engineer:
Ing. Gustavo Resquin
Manufacturing and Assembly:
Metalúrgica Vera S.R.L

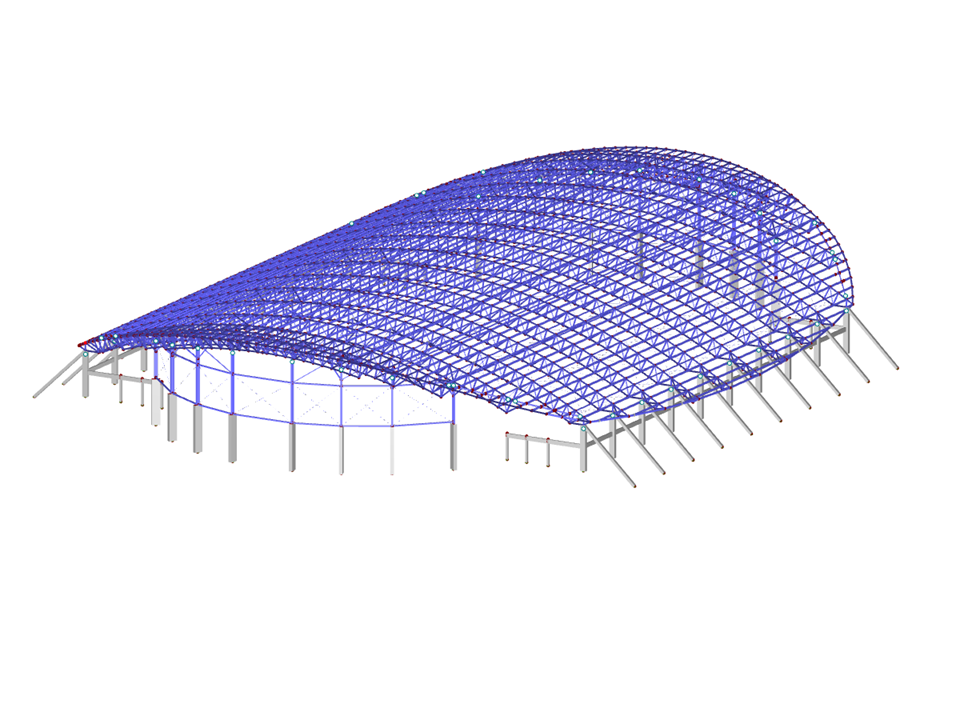

Velodrome Project
No Download Possible
Customer Project / View Only
| Number of Nodes | 2280 |
| Number of Lines | 5608 |
| Number of Members | 5608 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 32 |
| Number of Result Combinations | 2 |
| Total Weight | 592.907 tons |
| Dimensions (Metric) | 95.278 x 117.520 x 19.366 m |
| Dimensions (Imperial) | 312.59 x 385.56 x 63.54 feet |
| Program Version | 5.28.01 |
