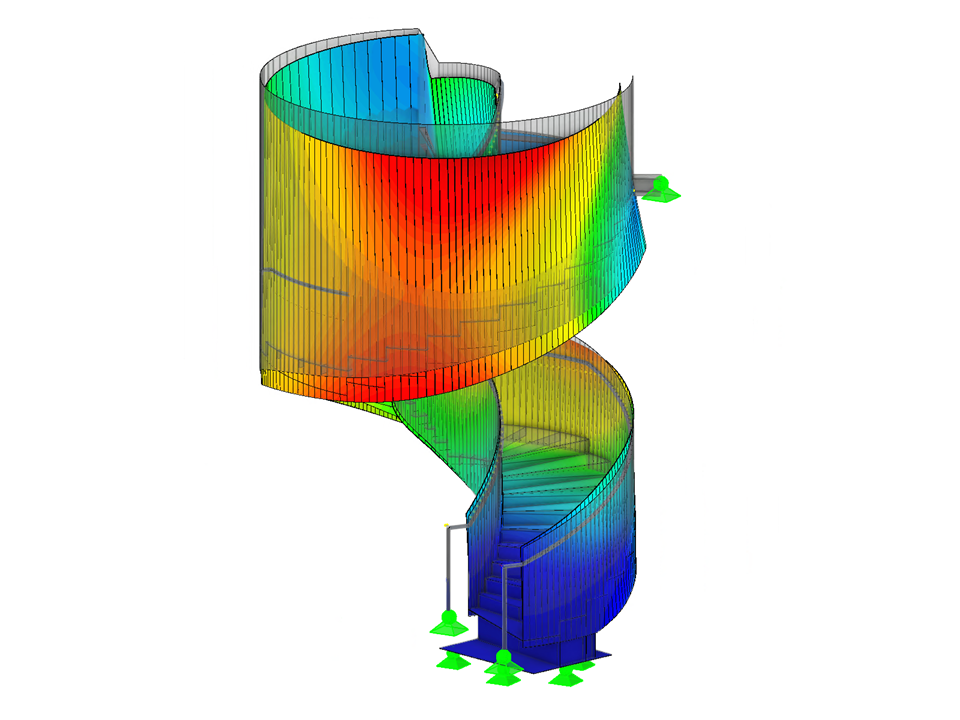

This model presents an artistically designed spiral staircase made of steel, inspired by Piccadilly Circus in London. The design shows the use of modern steel techniques and innovative geometric design. The structure was realized by Matrix Consulting Engineers Ltd.
The model illustrates practical solutions for complex spatial designs in an urban context.
Model Used in
Steel Spiral Staircase
No Download Possible
Customer Project / View Only
| Number of Nodes | 1668 |
| Number of Lines | 2518 |
| Number of Members | 309 |
| Number of Surfaces | 732 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 17,843 t |
| Dimensions (Metric) | 4,334 x 6,528 x 4,530 m |
| Dimensions (Imperial) | 14.22 x 21.42 x 14.86 feet |
