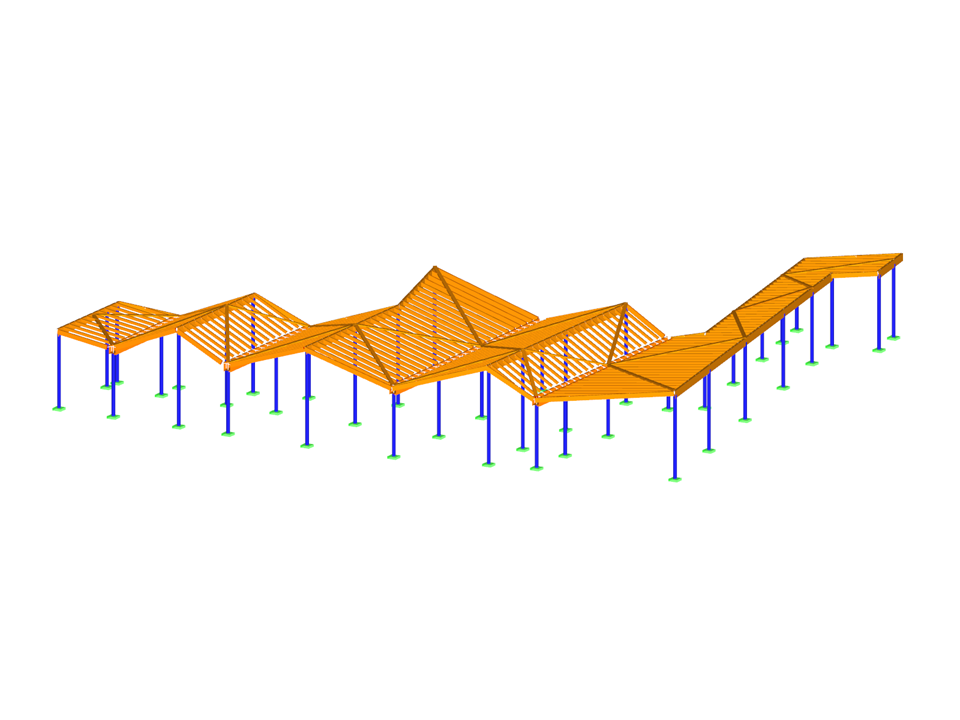

New Courtyard of René-Cassin College in Éloyes, France
No Download Possible
Customer Project / View Only
Number of Nodes | 372 |
Number of Lines | 601 |
Number of Members | 601 |
Number of Load Cases | 16 |
Number of Load Combinations | 32 |
Number of Result Combinations | 8 |
Total Weight | 15.069 tons |
Dimensions (Metric) | 34.581 x 34.940 x 5.878 m |
Dimensions (Imperial) | 113.45 x 114.63 x 19.28 feet |
Program Version | 5.23.02 |
