Download the model of a hinge bearing here, and open it with the structural FEA software RFEM.
This model is used in the free webinar "Stress Analysis of Surfaces and Members in RFEM 6 and RSTAB 9" on July 14, 2020 (in English; on July 12, 2020 in German).
Model Used in
- Stress Analysis of Surfaces and Members in RFEM 6 and RSTAB 9
- Stress Analysis of Surfaces and Members in RFEM 6 and RSTAB 9
- Stress Analysis of Surfaces and Members in RFEM 6 and RSTAB 9
- Structural Analysis Software for Aluminum Structures | RFEM 6 & RSTAB 9 by Dlubal Software
- Structural Analysis and Design Software for Timber Structures | RFEM 6 & RSTAB 9 by Dlubal Software

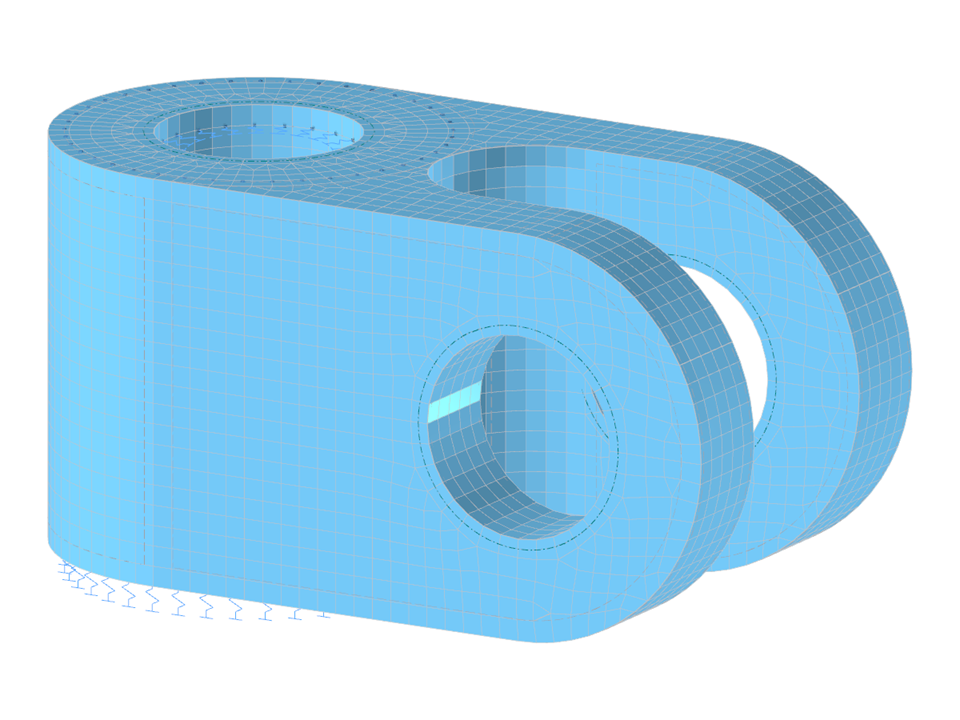

Hinge Bearing
| Number of Nodes | 36 |
| Number of Lines | 55 |
| Number of Members | 0 |
| Number of Surfaces | 21 |
| Number of Solids | 1 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.001 tons |
| Dimensions (Metric) | 0.080 x 0.040 x 0.040 m |
| Dimensions (Imperial) | 0.26 x 0.13 x 0.13 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
