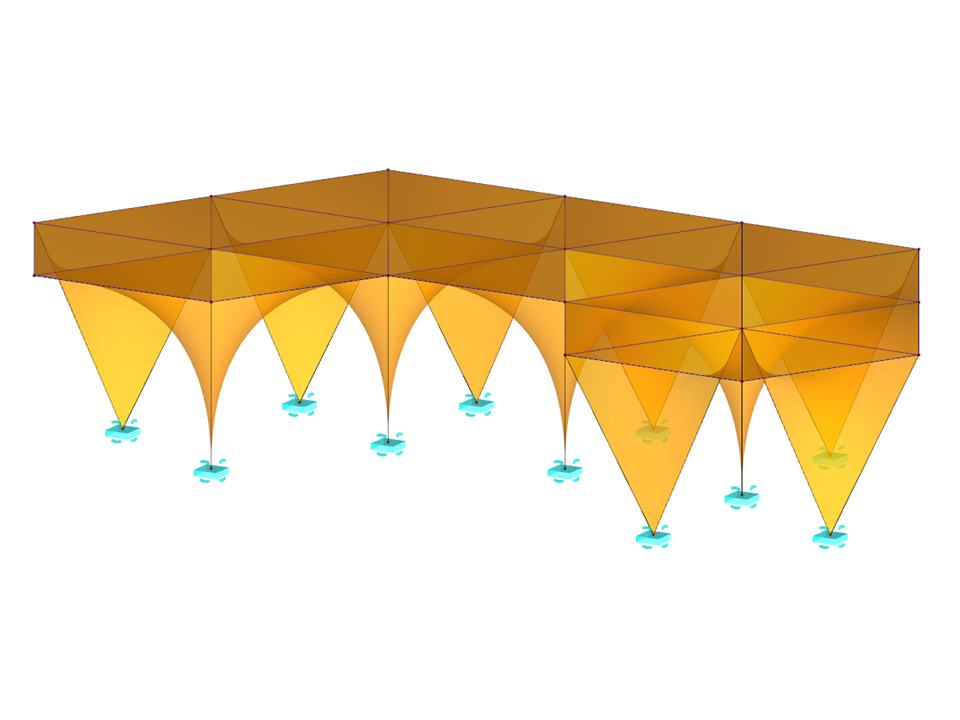

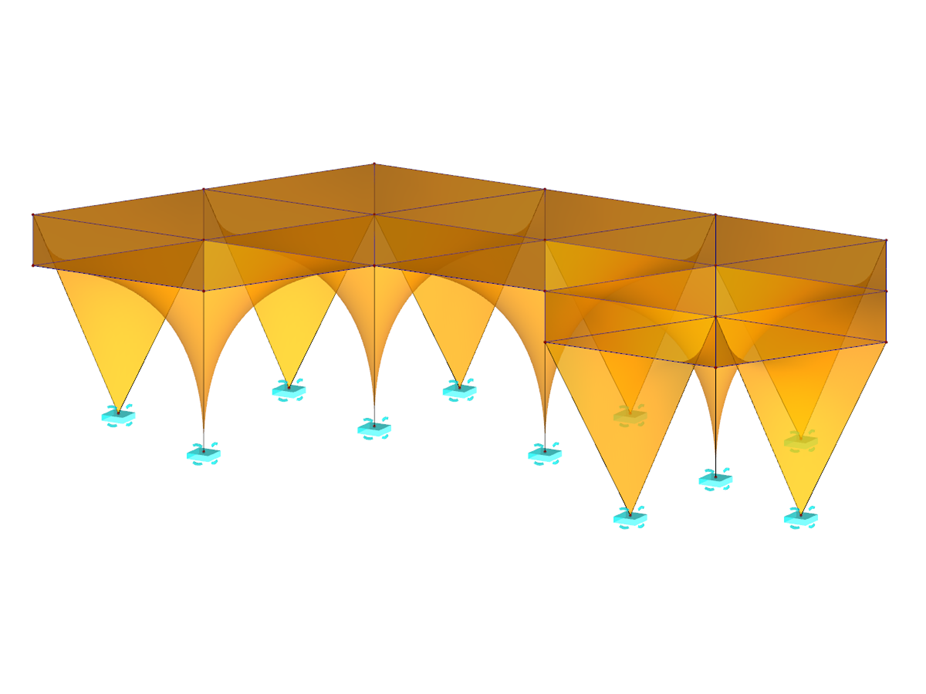

Bamboo Stalactite
No Download Possible
Customer Project / View Only
| Number of Nodes | 30 |
| Number of Lines | 62 |
| Number of Members | 62 |
| Number of Surfaces | 23 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 1 |
| Total Weight | 28.686 tons |
| Dimensions (Metric) | 28.708 x 15.498 x 6.588 m |
| Dimensions (Imperial) | 94.19 x 50.85 x 21.61 feet |
| Program Version | 5.14.01 |
Length: 03:03:00 min
Length: 02:50:31 min
Length: 00:00:58 min
Length: 00:01:02 min
Length: 00:00:34 min
Knowledge Base
Length: 00:00:56 min
Length: 00:52:34 min
Length: 01:06:59 min
General
Length: 00:02:32 min
Using the Timber Design add-on, timber column design is possible according to the 2018 NDS standard ASD method. Accurately calculating timber member compressive capacity and adjustment factors is important for safety considerations and design. The following article will verify the maximum critical buckling strength calculated by the Timber Design add-on using step-by-step analytical equations as per the NDS 2018 standard including the compressive adjustment factors, adjusted compressive design value, and final design ratio.
In this article, the adequacy of a 2x4 dimension lumber subject to combined biaxial bending and axial compression is verified using the RF-/TIMBER AWC add-on module. The beam-column properties and loading are based on example E1.8 of AWC Structural Wood Design Examples 2015/2018.
In RFEM 5 as well as RSTAB 8 in RF-/FOUNDATION Pro, you can save the foundation dimensions for all five foundation types as foundation templates in a user-defined database and use them later in other models.
In RF-/FOUNDATION Pro, the foundation design requires the definition of the corresponding loading (load cases, load combinations, or result combinations) for different design situations (STR, GEO, UPL, or EQU).
You can define built-up timber cross-sections, for example, channel, T, I, and box girders. Single elements are connected by rigid or semi‑rigid connections. Furthermore, hybrid cross-sections are available. In this case, a submenu provides an option to assign different materials to the individual cross‑section parts.
For the fire resistance design of timber surfaces, you can display a charring diagram depending on the time of fire exposure.
It is also possible to print this charring diagram into the printout report.
In RFEM, the oriented strand board (OSB) material is available for the USA and Canada. The material parameters are taken from the "Panel Design Specification manual".
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. Simply specify the surface geometry and the timber panel elements are automatically generated using an internal member-surface construct, including the element connection stiffness. The Beam Panel thickness type is defined using the Multilayer Surfaces add-on.
A "beam panel" provides you with the following advantages:
- Single-sided or double-sided sheathing
- Automatic calculation of a semi-rigid coupling between studs and sheathing
- Nailed sheathing connection
- Stapled sheathing connection
- User-defined sheathing connection
- Representation as a complete geometric 3D object (frame, studs, surface, etc.), including eccentricity and automatically calculated stiffness between elements
- Consider openings via surface cells
- Design of the individual structural elements utilizing the Timber Design add-on (full shear wall design planned for a future release)
- Other material options available (e.g., particle board, gypsum, or fiberboard sheathing with cold-formed steel sections)
How does the "Orthotropic Plastic" material model work in RFEM?
What is the meaning of the superposition according to the CQC rule in a dynamic analysis??
How can I display the internal forces in the global coordinate system and not in the principal coordinate system of the cross-section?
Can I use RFEM to calculate a log house three-dimensionally?
How do I display some results of all load cases in the printout report, but other results of selected load cases only?
I would like to carry out the flexural buckling design for timber components with imperfections and internal forces according to the second-order analysis. Is it sufficient to activate this in Details of the RF‑/TIMBER Pro add-on module or is it necessary to make additional settings?
