Online Manual RFEM | Surfaces

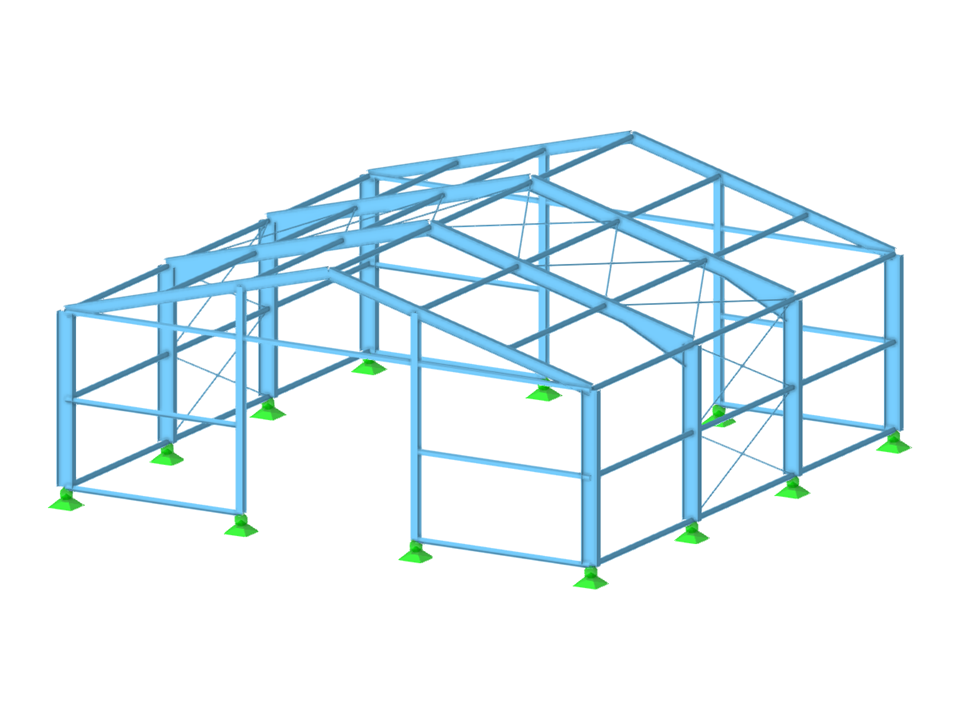

Download the model of a steel hall here, and open it with the finite element program RFEM. This model was created in the online training "RFEM 6 Tutorial for Beginners". It represents the current status of the video "Create New Model - General Data".
Steel Hall from Online Training | 13
| Number of Nodes | 60 |
| Number of Lines | 87 |
| Number of Members | 87 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 0 |
| Total Weight | 13.724 tons |
| Dimensions (Metric) | 15.000 x 6.500 x 15.000 m |
| Dimensions (Imperial) | 49.21 x 21.33 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
