This model was used to show how loads that are variable over height and perimeter can be applied to rotationally symmetric objects.
Model Used in

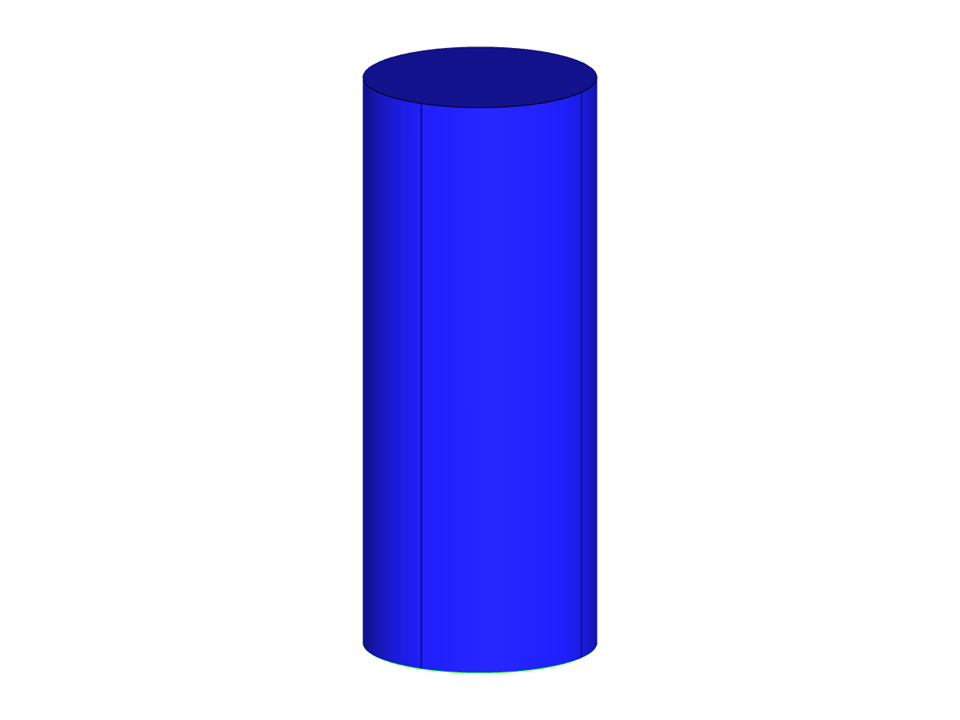

Circular Container
| Number of Nodes | 34 |
| Number of Lines | 21 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.134 tons |
| Dimensions (Metric) | 2,000 x 5,000 x 2,000 m |
| Dimensions (Imperial) | 6.56 x 16.4 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
