Question: Why is no support force displayed, even though I have modeled the member foundation?
Answer: If the model contains members with elastic foundations, the contact forces and contact moments are displayed numerically in Table 4.7. To control the graphical display of results, select the Members check box in the Results navigator.

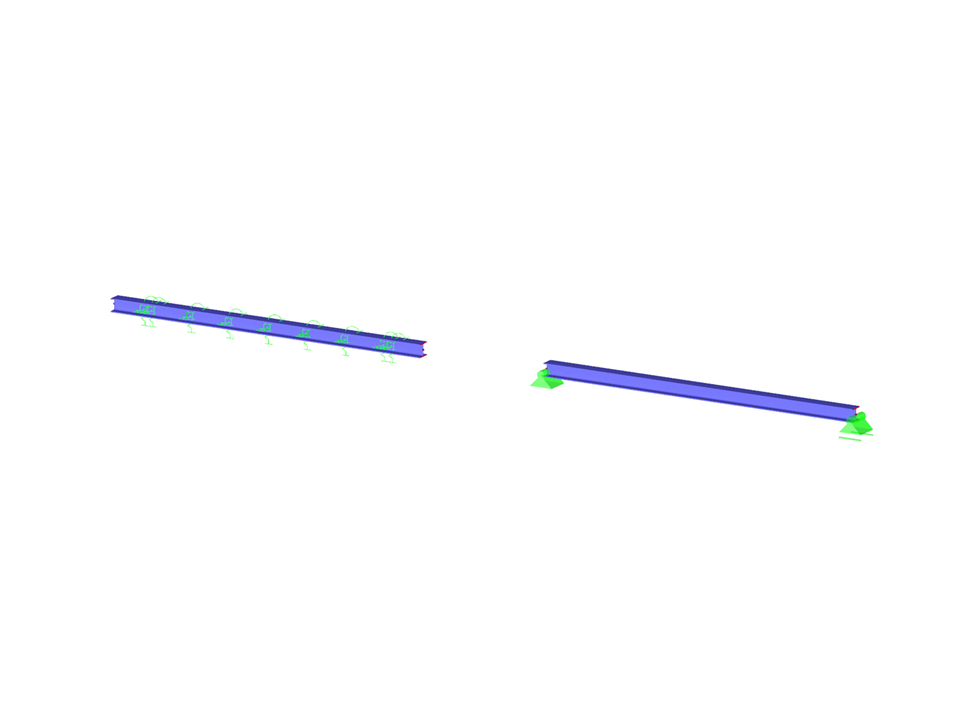

Model Used in
Single-Span Beam, Member Elastic Foundation
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.613 tons |
| Dimensions (Metric) | 12,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 39.37 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
