The year 2019 marks the 50th anniversary of the first moon landing. For this occasion, a road show was planned in several cities throughout the United States of America. For this road show, a large temporary theater tent housing 1,600 seats was designed.
Structural Design:
formTL ingenieure für tragwerk und leichtbau GmbH
www.form-tl.de
Structural Design:
formTL ingenieure für tragwerk und leichtbau GmbH
www.form-tl.de

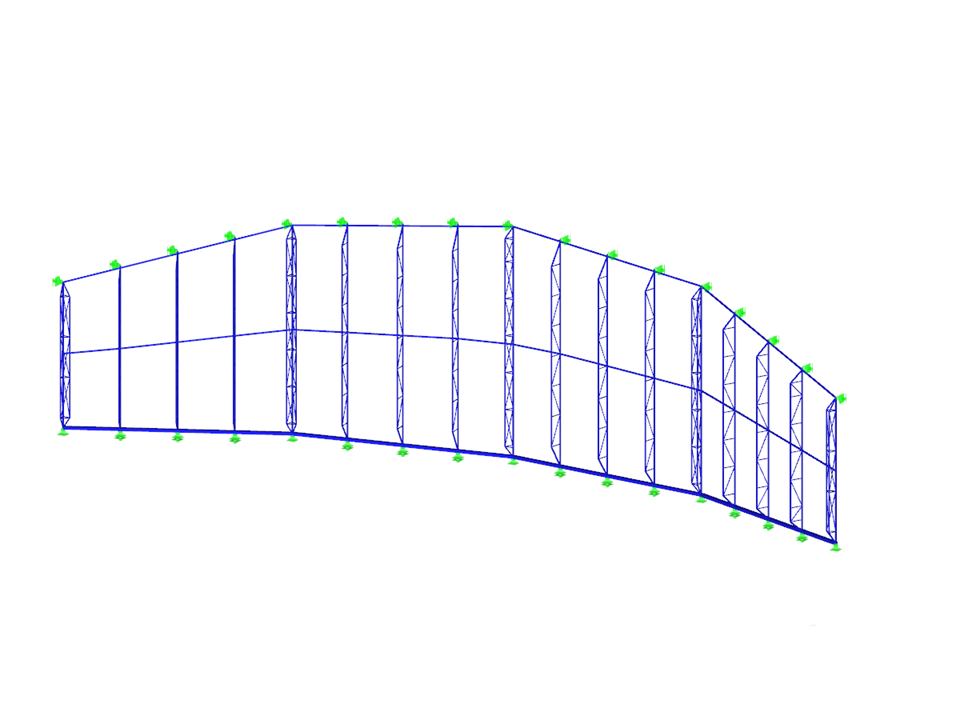

Tent Supporting Structure with Arch Trusses
No Download Possible
Customer Project / View Only
Number of Nodes | 300 |
Number of Lines | 656 |
Number of Members | 656 |
Number of Load Cases | 18 |
Number of Load Combinations | 10 |
Number of Result Combinations | 1 |
Total Weight | 4.844 tons |
Dimensions (Metric) | 37.795 x 5.972 x 10.461 m |
Dimensions (Imperial) | 124 x 19.59 x 34.32 feet |
Program Version | 5.24.01 |
