This model is a tensegrity structure. The structural behavior of this structure is that the main members like bars, beams or struts are under compression and don't touch each other. Therefore, they are connected by the prestressed tensioned members like cables in order to stabilize the structure.

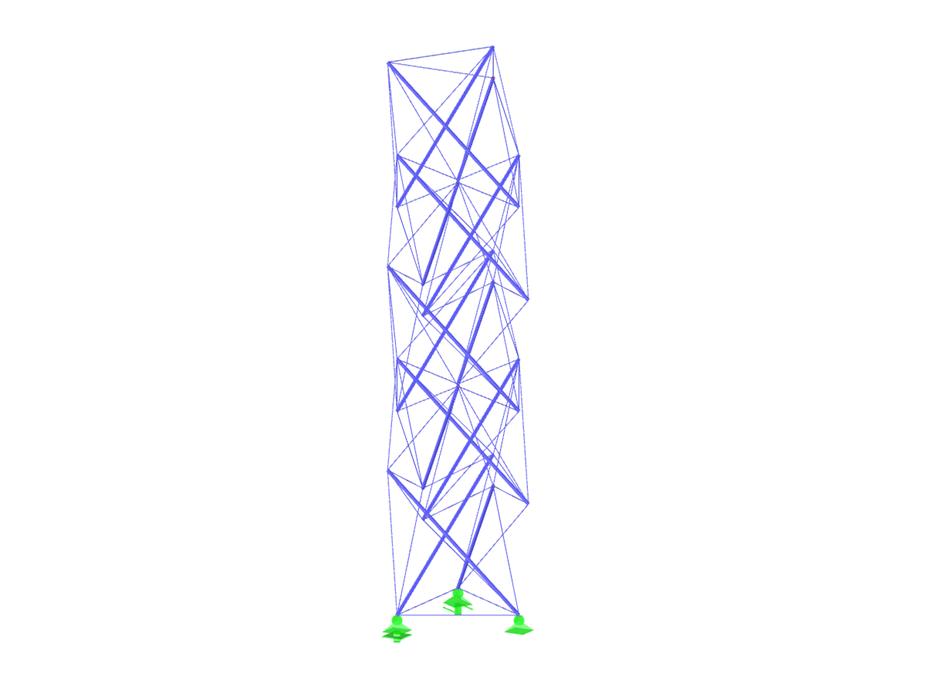

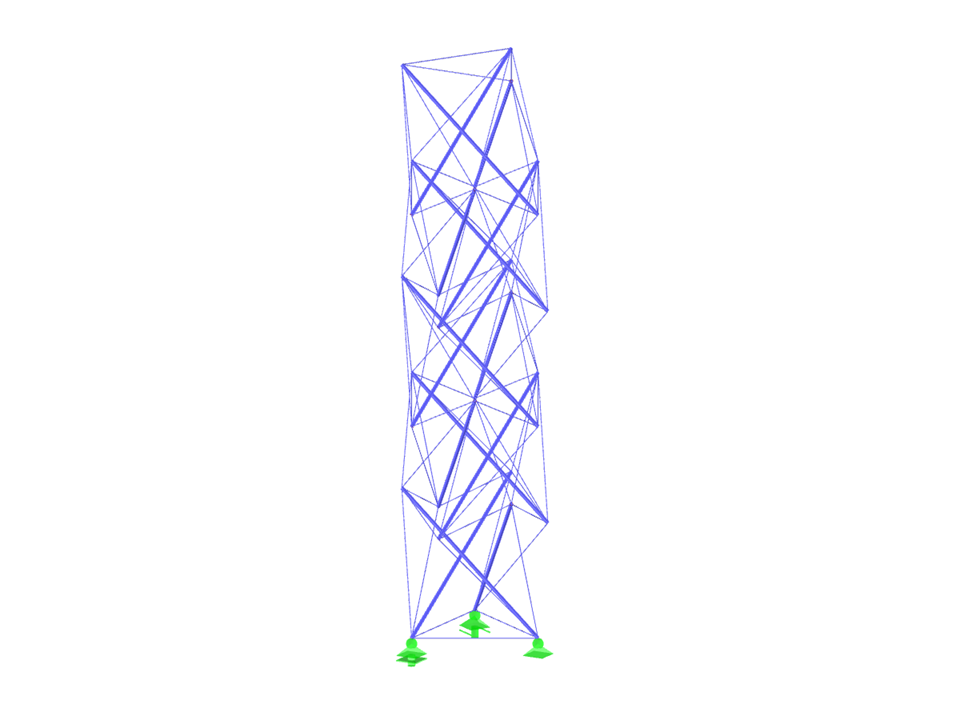

Tensegrity Structure
| Number of Nodes | 30 |
| Number of Members | 96 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Total Weight | 0.251 tons |
| Dimensions (Metric) | 2.156 x 2.045 x 8.156 m |
| Dimensions (Imperial) | 7.07 x 6.71 x 26.76 feet |
| Program Version | 8.24.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
