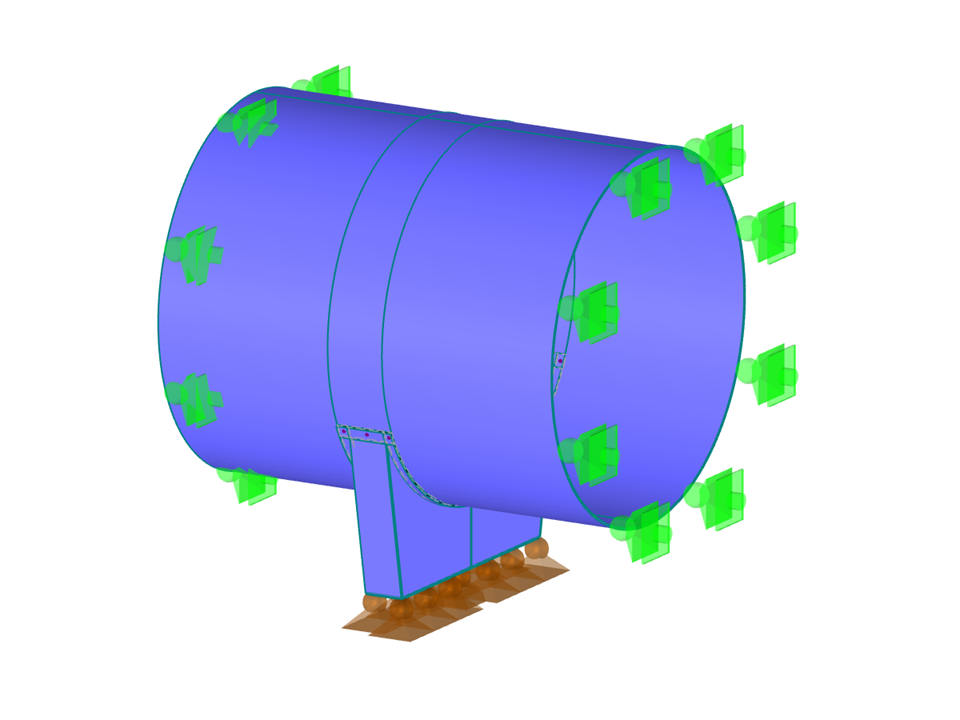

The model is presented in such a way as to show how nonlinear effects in the global calculation parameters can be eliminated. Precise consideration is given to the effects of lost supports, foundations, member nonlinearities, and contact solids. The arrangement of the supporting elements and nodes illustrates the specific geometry of a steel structure and highlights important structural details.
Steel Structure | Deactivating Nonlinear Effects
| Number of Nodes | 97 |
| Number of Lines | 110 |
| Number of Surfaces | 68 |
| Number of Solids | 12 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Total Weight | 0.708 t |
| Dimensions (Metric) | 2.552 x 2.268 x 2.268 m |
| Dimensions (Imperial) | 8.37 x 7.44 x 7.44 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
