This model represents an advanced membrane structure, designed as a static system consisting of multiple membranes. The construction is based on modern engineering methods and simulates realistic material behavior. The model is ideal for investigating innovative membrane constructions and lightweight structural solutions. The linked image (https://www.dlubal.com/de/img/15487) clearly illustrates the spatial geometry and structural features of the system.


Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

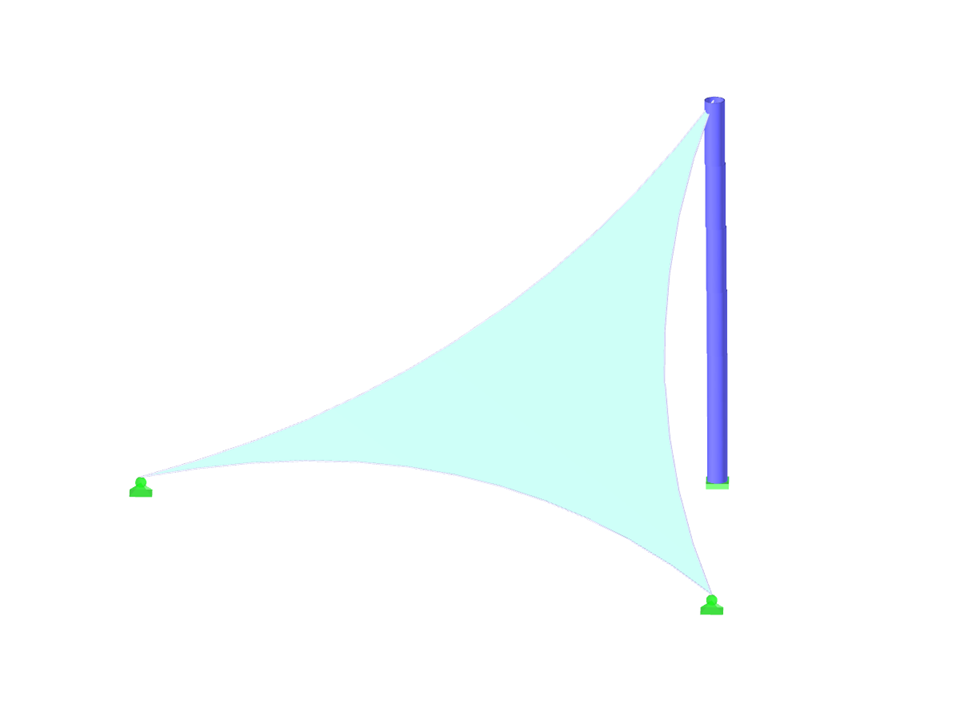

Membrane Structure

Number of Nodes 4
Number of Lines 5
Number of Members 4
Number of Surfaces 1
Number of Load Cases 2
Total Weight 0,135 t
Dimensions (Metric) 3.640 x 5.640 x 3.820 m
Dimensions (Imperial) 11.94 x 18.5 x 12.53 feet
Program Version 5.24.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
